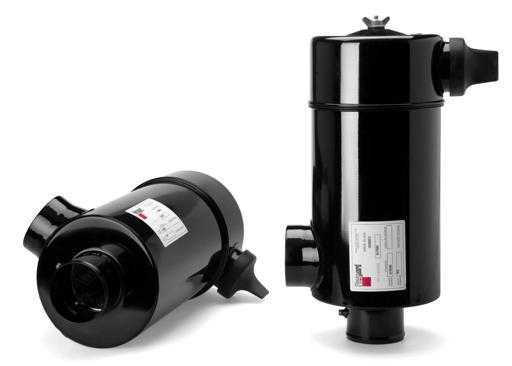

Air Filtration System L: 15 in, OD: 3,5 in, ID: 3,75 in
#DONG080195
Specifications
| Diameter | 8 in (203.2 mm) |
| Diameter Range | 3 to 3.99 in |
| Family | FHG |
| Inner Diameter | 3,75 in (95,3 mm) |
| Length | 15 in (381 mm) |
| Outer Diameter | 3.5 in (88.9 mm) |
| Overall Length | 20.24 in (514.1 mm) |
| Rated Flow High Range | 311 cfm (8,81 m³/min) |
| Rated Flow Low Range | 241 cfm (7 m³/min) |
| Rated Flow Mid Range | 279 cfm (7,91 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H20 (152,2 mm H20) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 15 to 15.99 in |
Interchanges & Equivalent parts:
| DN G080195 |
| AH19065 |
| 9576G080195 |
| 258541M91 |
| 057184 |
| DA551S |
| 384921 |
| 57184 |
| 2940011959692 |
| 29321139 |
| 84213190000 |
| N07786 |
| PI99412 |
| 1071348 |
| 1243113 |
| G080195 |
| 5018438 |
| 204098 |
| 46423400 |
| 180206 |
| 90025380254 |
| 59450270 |
| T384921 |
| 408794 |
| 900025380254 |
| 199421A |
| FHG080195 |
| LL847288 |
| 28174080 |
