2 POINTS

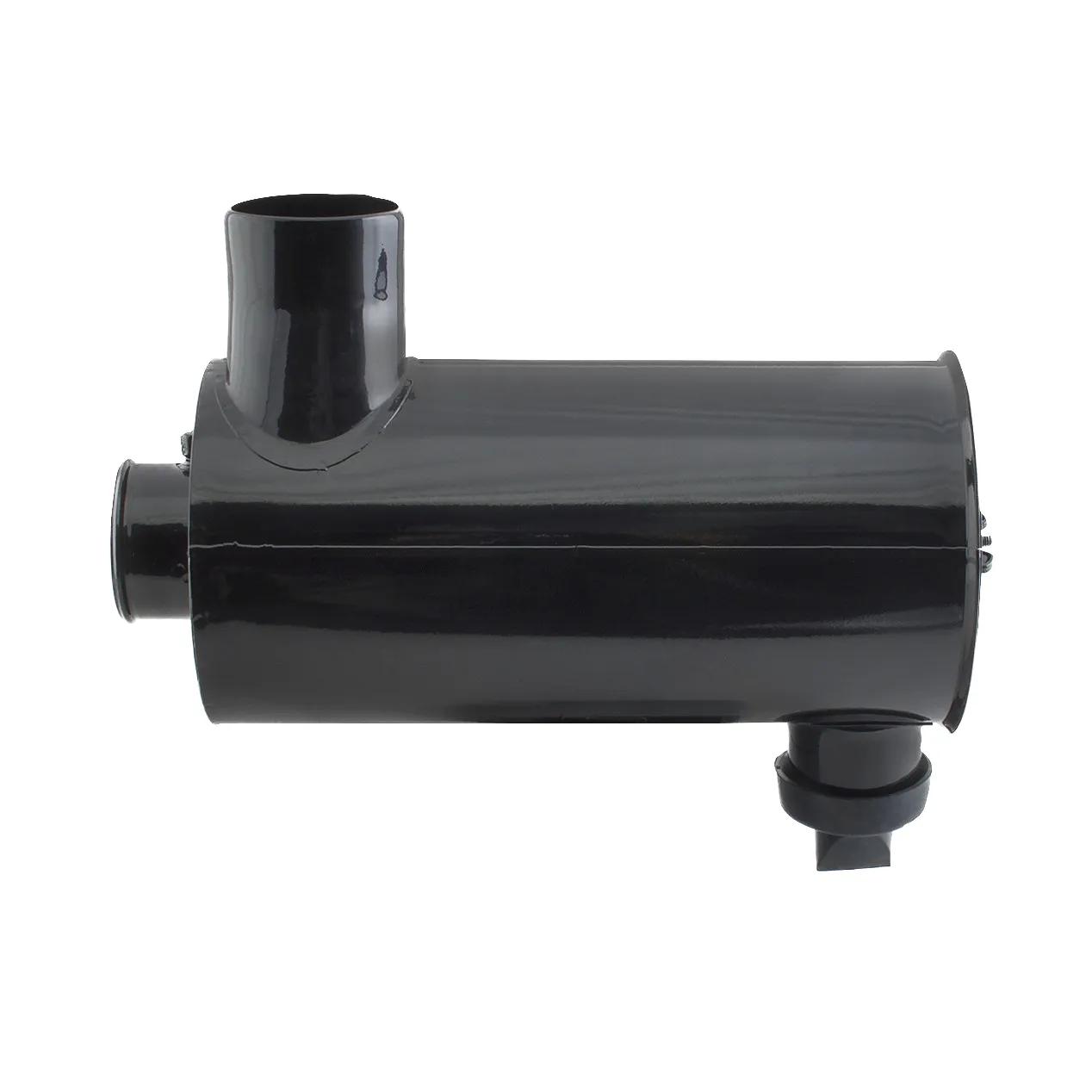

Air Filtration System L: 16,04 in, OD: 3,5 in, ID: 3,75 in
#DONG080372
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8 in (203.2 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FHG |
| Inlet Diameter | 3.74 in |
| Inner Diameter | 3.75 in (95.3 mm) |
| Length | 16.04 in |
| Outlet Diameter | 3.5 in |
| Overall Length | 19.25 in |
| Rated Flow High Range | 276 cfm (7.82 m³/min) |
| Rated Flow Low Range | 216 cfm (7 m³/min) |
| Rated Flow Mid Range | 244 cfm (6.91 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 16 to 16.99 in |
| Style | High Pulsation |
Interchanges & Equivalent parts:
| G080372 |
| 2191-G080372 |
| AF477 |
| AF478 |
| DONG080372 |
| DN G080372 |
| DN G080372 |
