2 POINTS

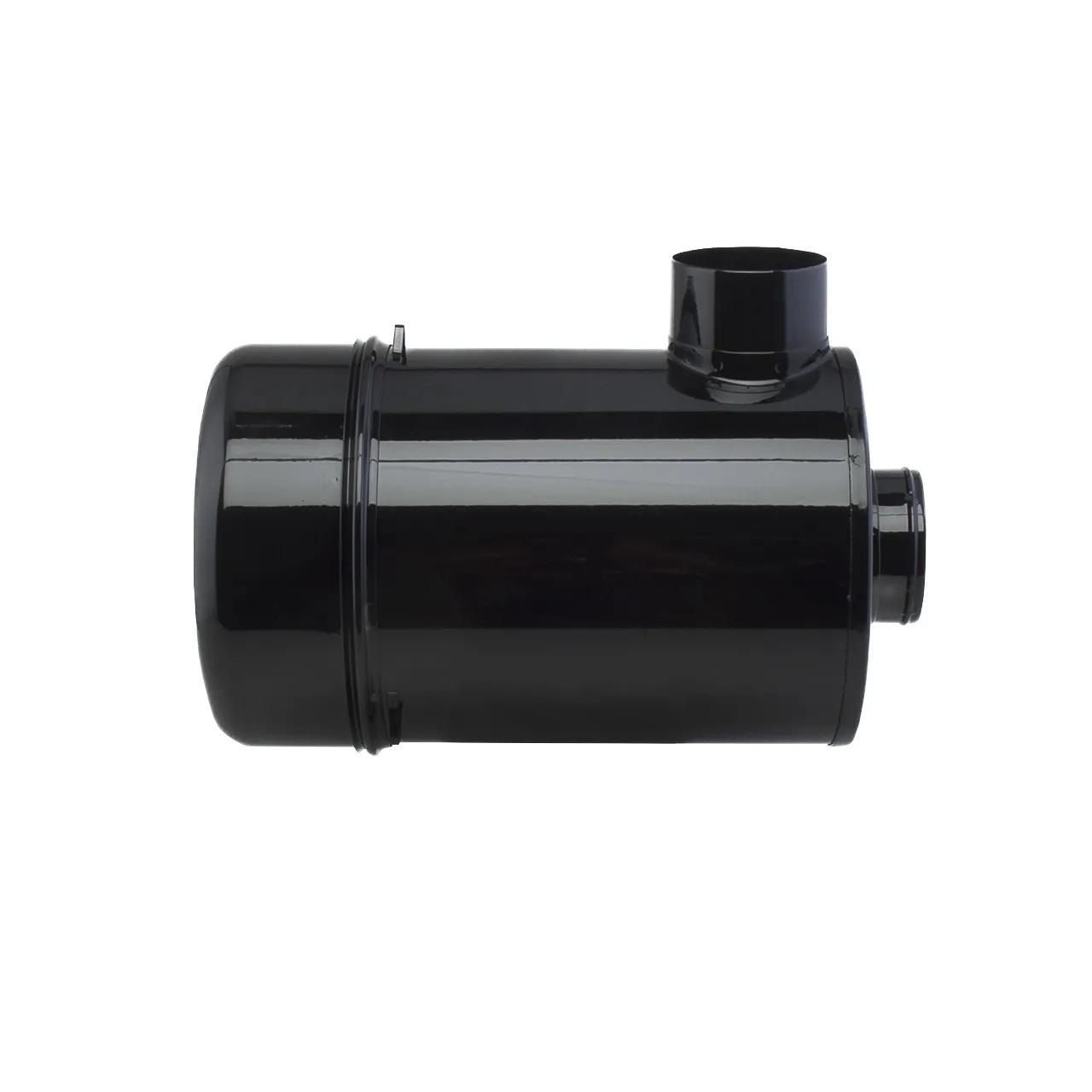

Air Filtration System L: 16,22 in
#DONG100003
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 10.2 in (259.08 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | FWG |
| Inlet Diameter | 4.02 in |
| Length | 16.22 in |
| Outlet Diameter | 4 in |
| Rated Flow High Range | 384 cfm (10,9 m³/min) |
| Rated Flow Low Range | 297 cfm (9 m³/min) |
| Rated Flow Mid Range | 343 cfm (9,72 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 16 to 16.99 in |
Interchanges & Equivalent parts:
| G100003 |
| FWG100003 |
| 113692 |
| A0546020 |
| 74745053 |
| 74008797 |
| 53500422 |
| 8612979 |
| 141700050 |
| 60012117 |
| C0150560 |
| 5E2181 |
| 4569000121 |
| 62345353 |
| 43437 |
| 884652C91 |
| 884658C1 |
| 3905241 |
| 605414090027 |
| 71450 |
| 499225 |
| 6059T6068T |
| 1632441 |
| M1632441 |
| 2261014 |
| 94193 |
| 12460806 |
| 7304000026 |
| 38206424 |
| 182645 |
| 51608388 |
| X14210034 |
| 8474080690 |
| A253477 |
| 81084 |
| GD1754814 |
| 38204391 |
| 605661 |
| 1020920901 |
| 29320653 |
| LL847186 |
| 79060802 |
| 68030441 |
| 125302 |
| 2403060 |
| 12849 |
| 10A27893 |
| 311558043 |
| A0533680 |
| A0534468 |
| 01028604 |
| 010975 |
| 081084 |
| 020023 |
| 00215 |
| 030441 |
| 042224 |
| 060012117 |
| 062345353 |
| 2191-G100003 |
| AF130K |
| DONG100003 |
| PA1636-FN |
| X |
| 30441 |
| 42224 |
| 10975 |
| 1028604 |
| 6.05414E+11 |
