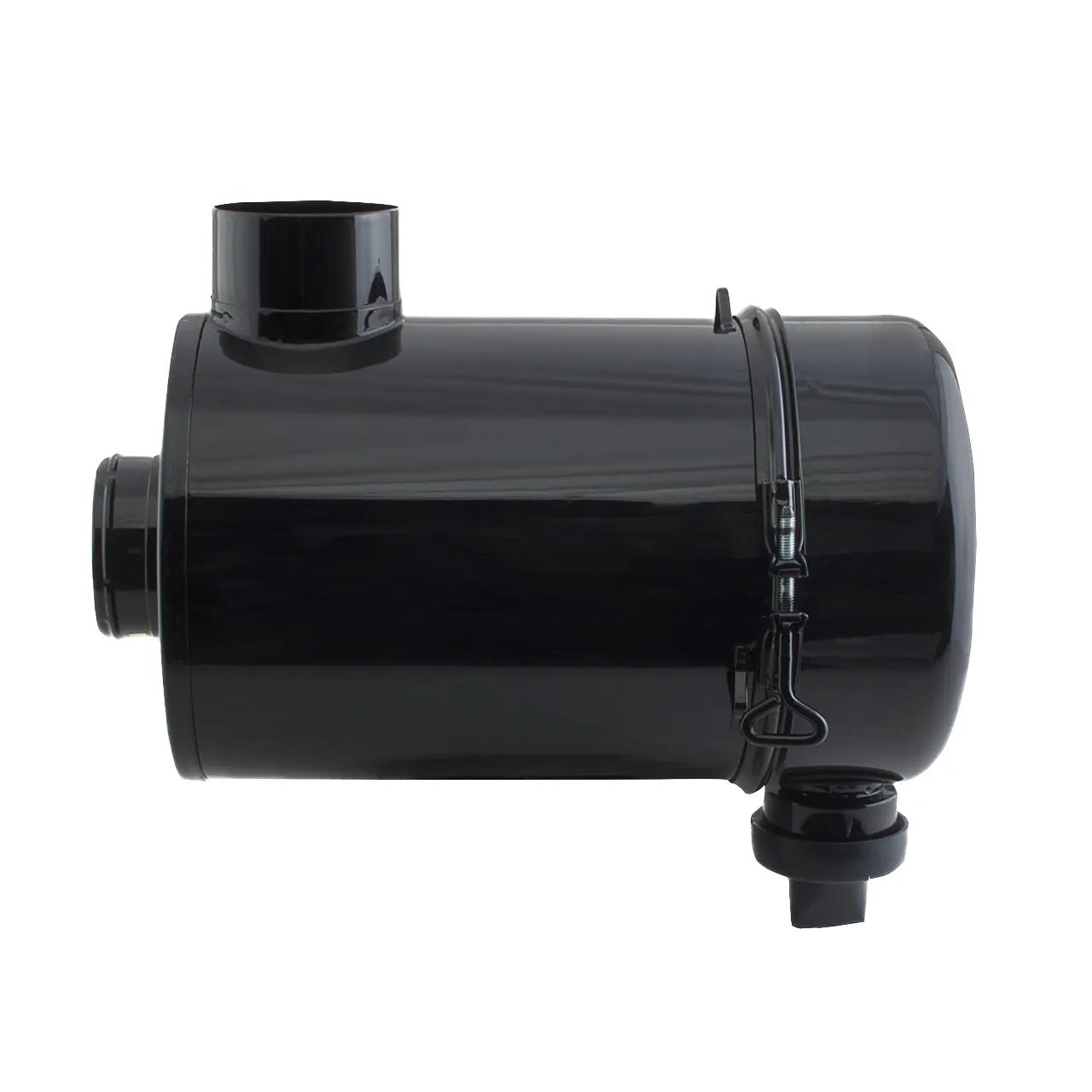

Air Filtration System L: 16,22 in
#DONG100004
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 10.2 in (259.08 mm) |
| Diameter Range | 10 to 10.99 in |
| Family | FWG |
| Inlet Diameter | 4.02 in (102.11 mm) |
| Length | 16.22 in (412 mm) |
| Outlet Diameter | 4 in (101.6 mm) |
| Rated Flow High Range | 384 cfm (10,9 m³/min) |
| Rated Flow Low Range | 297 cfm (9 m³/min) |
| Rated Flow Mid Range | 343 cfm (9,72 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 16 to 16.99 in |
Interchanges & Equivalent parts:
| FWG100004 |
| 601187 |
| P71163 |
| 328187 |
| CLE00357 |
| 28K97 |
| 114272000 |
| 407283 |
| B407283 |
| D050918 |
| 203140 |
| M1503287 |
| 179967 |
| 5197848 |
| D2JL9600A |
| 120021 |
| L120021 |
| M2054 |
| 59585190 |
| 10719261 |
| 811914700 |
| 811914700J |
| P19261 |
| 580049373 |
| 10000823 |
| LPP19261 |
| PR10000823 |
| 15223 |
| RD551480 |
| 64115270 |
| 64604258 |
| 686368 |
| 9217925 |
| 59740431 |
| 0179967 |
| 1503287 |
| 351737 |
| AF130K |
| DONG100004 |
| G100272 |
| PA1636-FN |
| DN G100004 |
| DN G100004 |
