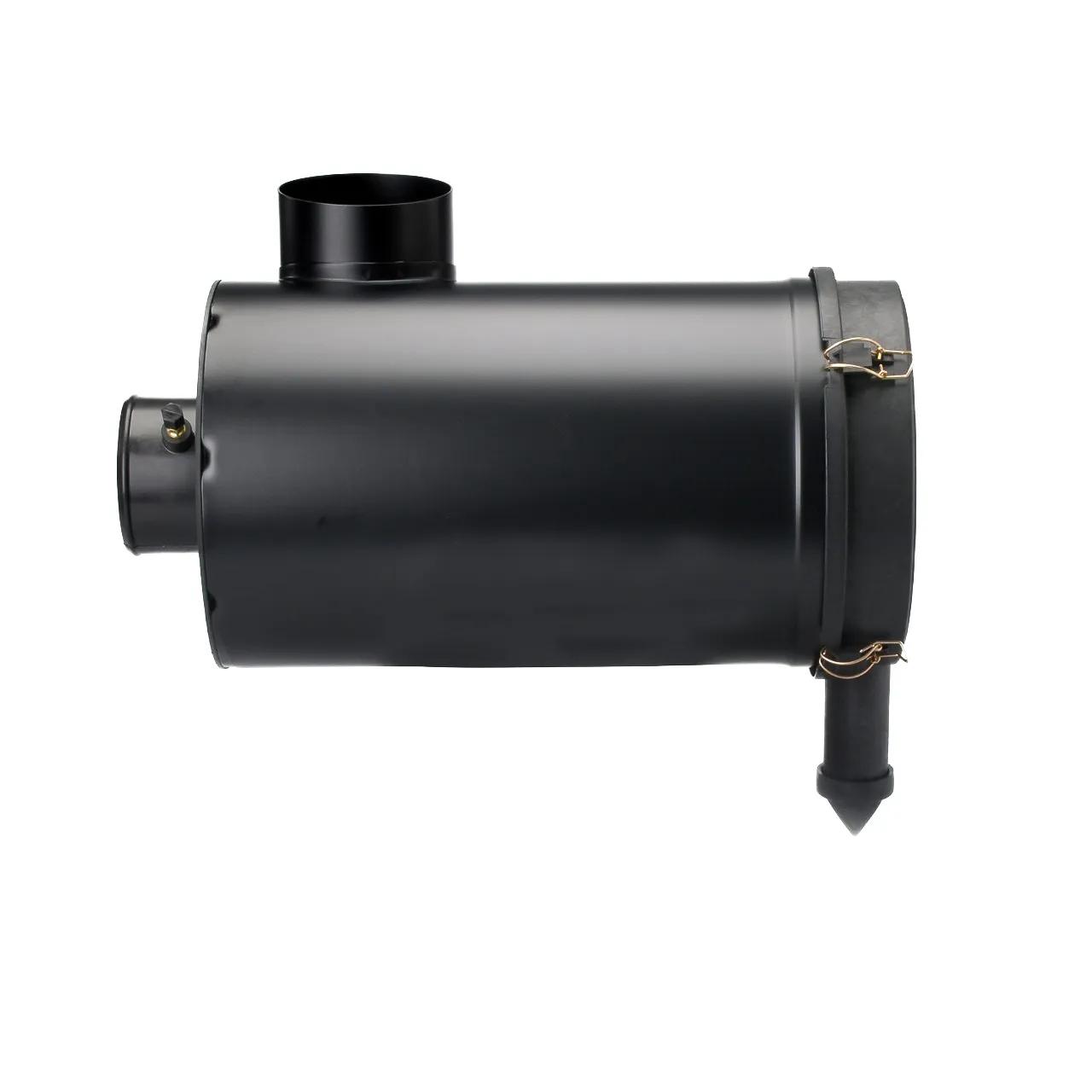

Air Filtration System L: 16,85 in, OD: 4,5 in
#DONG110206
Product Overview
AIR CLEANER, FRG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11 in (279.4 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | FRG |
| Inlet Diameter | 5 in (127 mm) |
| Length | 16.85 in (428 mm) |
| Outlet Diameter | 4.5 in (114.3 mm) |
| Overall Length | 21.92 in (556.8 mm) |
| Rated Flow High Range | 490 cfm (13.9 m³/min) |
| Rated Flow Low Range | 371 cfm (10.5 m³/min) |
| Rated Flow Mid Range | 430.84 cfm (12.2 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 16 to 16.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 523642 |
| 10049309 |
| 86994313 |
| A171930 |
| NG110206 |
| NX14210067 |
| 1314535H91 |
| 10000526 |
| 10000528 |
| RN24080 |
| Y0602046583 |
| 194291 |
| 194291A |
| 999999A |
| VA30220005A |
| 3470620 |
| 61532 |
| 43930247 |
| 91563069 |
| F122304 |
| 1306667H92 |
| D3A0349 |
| 7304000641 |
| 33500311 |
| LL847438 |
| 114666607 |
| 4421720000 |
| VTFTG110206 |
| 151181001 |
| 0970430616 |
| DN G110206 |
| DN G110206 |
| 2191-G110206 |
| AF2243 |
| AF2368 |
| DONG110206 |
| RS3517XP |
