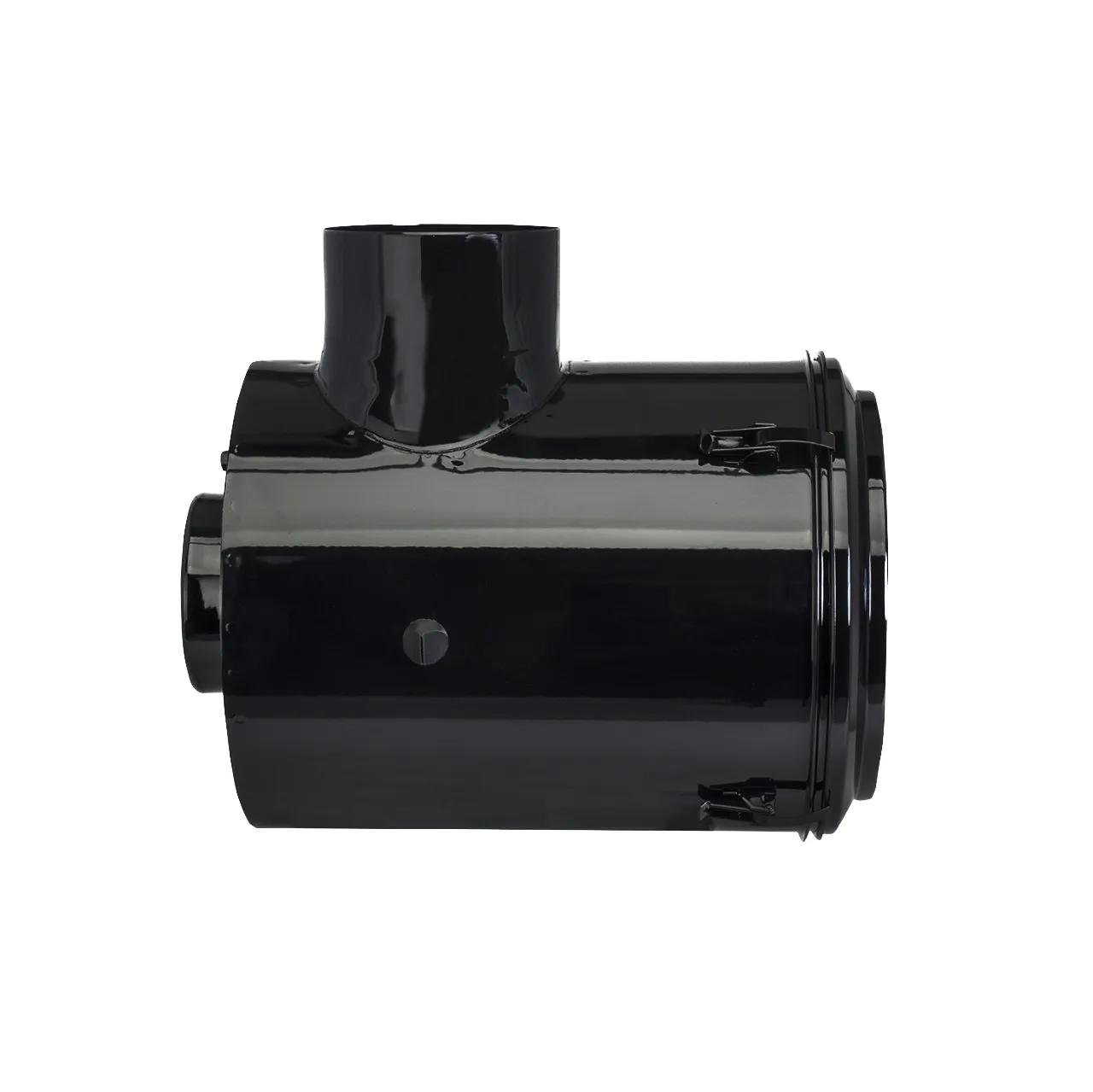

Air Filtration System L: 16,86 in, OD: 6 in
#DONB140044
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 14 in (355.6 mm) |
| Diameter Range | 13 to 13.99 in |
| Family | EBB |
| Inlet Diameter | 7.01 in (178.06 mm) |
| Length | 16.86 in (428.3 mm) |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 20.12 in (511.1 mm) |
| Rated Flow High Range | 1321 cfm (37,41 m³/min) |
| Rated Flow Low Range | 901 cfm (25,5 m³/min) |
| Rated Flow Mid Range | 1049 cfm (29,71 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 16 to 16.99 in |
Interchanges & Equivalent parts:
| 100690 |
| 114647200 |
| 87088900003 |
| 8237300000 |
| 408592 |
| 62394 |
| 533770C91 |
| 436001530900 |
| 43161002 |
| LG0203001 |
| 19500760 |
| DN B140044 |
| DN B140044 |
| 2191-B140044 |
| 87491 |
| AF594 |
| DONB140044 |
| PA2525 |
