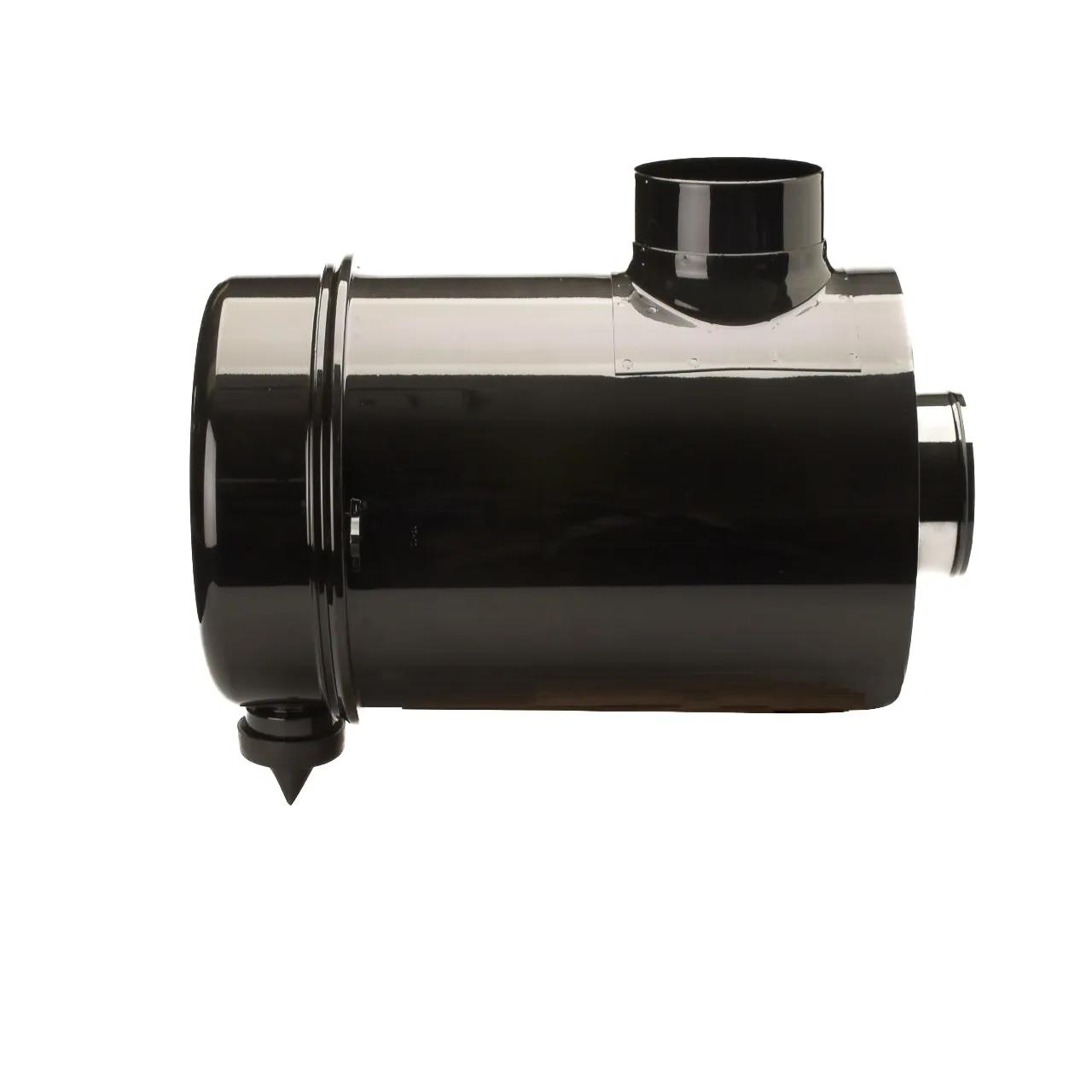

Air Filtration System L: 16,92 in, OD: 6 in
#DONG140523
Product Overview
AIR CLEANER, FRG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 14 in (355.6 mm) |
| Diameter Range | 13 to 13.99 in |
| Family | FRG |
| Inlet Diameter | 5.98 in (151.9 mm) |
| Length | 16.92 in (429.8 mm) |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 24.24 in (615.7 mm) |
| Rated Flow High Range | 642 cfm (18.2 m³/min) |
| Rated Flow Low Range | 488 cfm (13.8 m³/min) |
| Rated Flow Mid Range | 568.57 cfm (16.1 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 16 to 16.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| AU100241 |
| 80483211 |
| G80483211 |
| 810136 |
| 304330 |
| 12470303 |
| AF2202 |
| AF2203 |
| CA7484 |
| DONG140523 |
| RS3506XP |
| 119350 |
| DN G140523 |
| DN G140523 |
