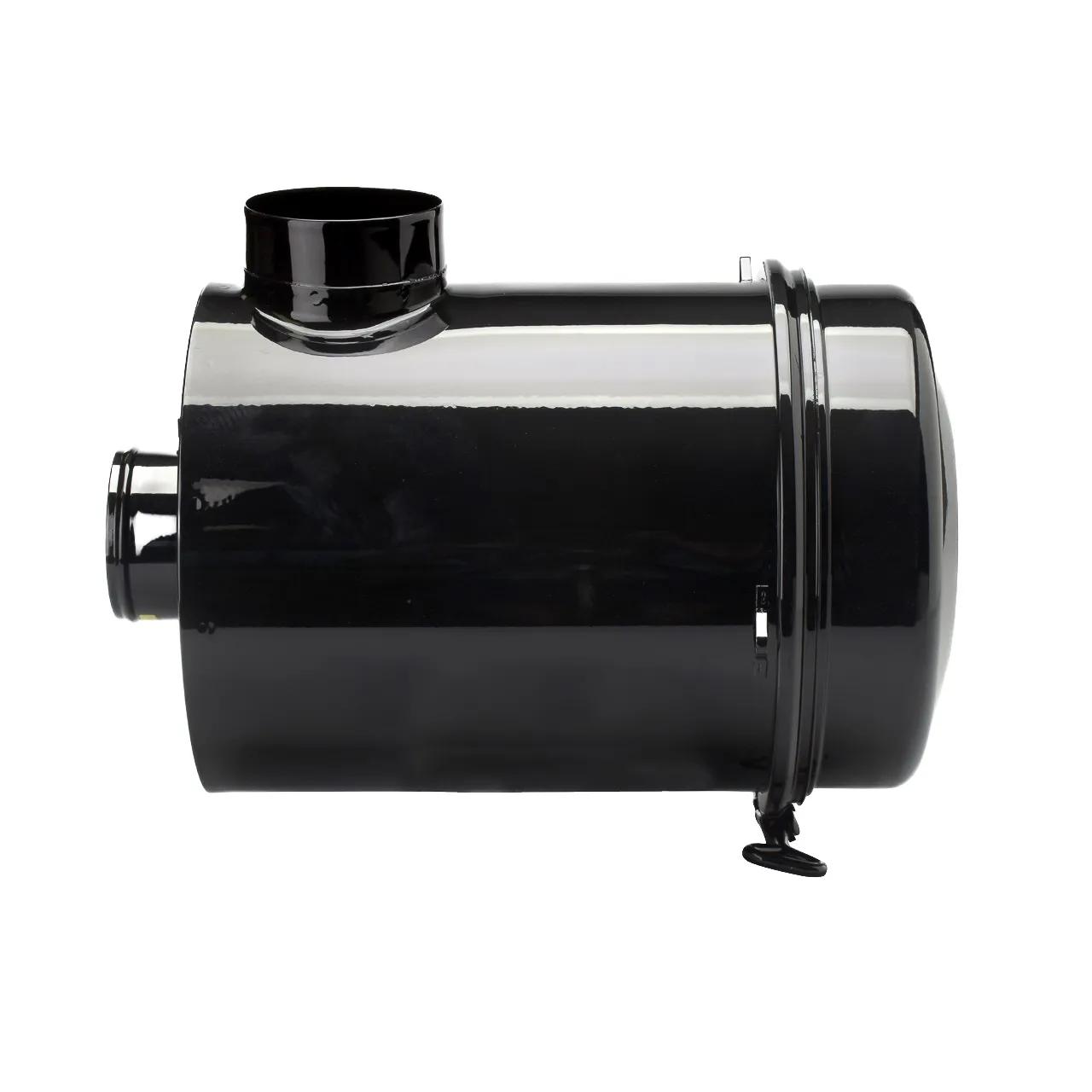

Air Filtration System L: 16,93 in
#DONG120059
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11.8 in (299.8 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | FWG |
| Inlet Diameter | 4.49 in (114.05 mm) |
| Length | 16.93 in (430.1 mm) |
| Outlet Diameter | 4 in (101.6 mm) |
| Rated Flow High Range | 487 cfm (13,8 m³/min) |
| Rated Flow Low Range | 368 cfm (10,4 m³/min) |
| Rated Flow Mid Range | 434,38 cfm (12,3 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 16 to 16.99 in |
Interchanges & Equivalent parts:
| W00532439 |
| 352584 |
| 53500303 |
| 53500383 |
| N08165 |
| 8612969 |
| S505882 |
| 4569000122 |
| 46Q71 |
| 43461 |
| 102A131 |
| 7723075 |
| 3314H2 |
| 73499 |
| 69032911 |
| 5L11 |
| 7304000010 |
| 61497 |
| 124342 |
| 18162F |
| LL84789 |
| 99050877 |
| 204685400 |
| 172121 |
| 10A19471 |
| 10A28694 |
| 28653 |
| DN G120059 |
| DN G120059 |
| 00216 |
| 049343 |
| 07723075 |
| 2191-G120059 |
| AF97K |
| DONG120059 |
| PA1646-FN |
| PA1646FN |
| 49343 |
