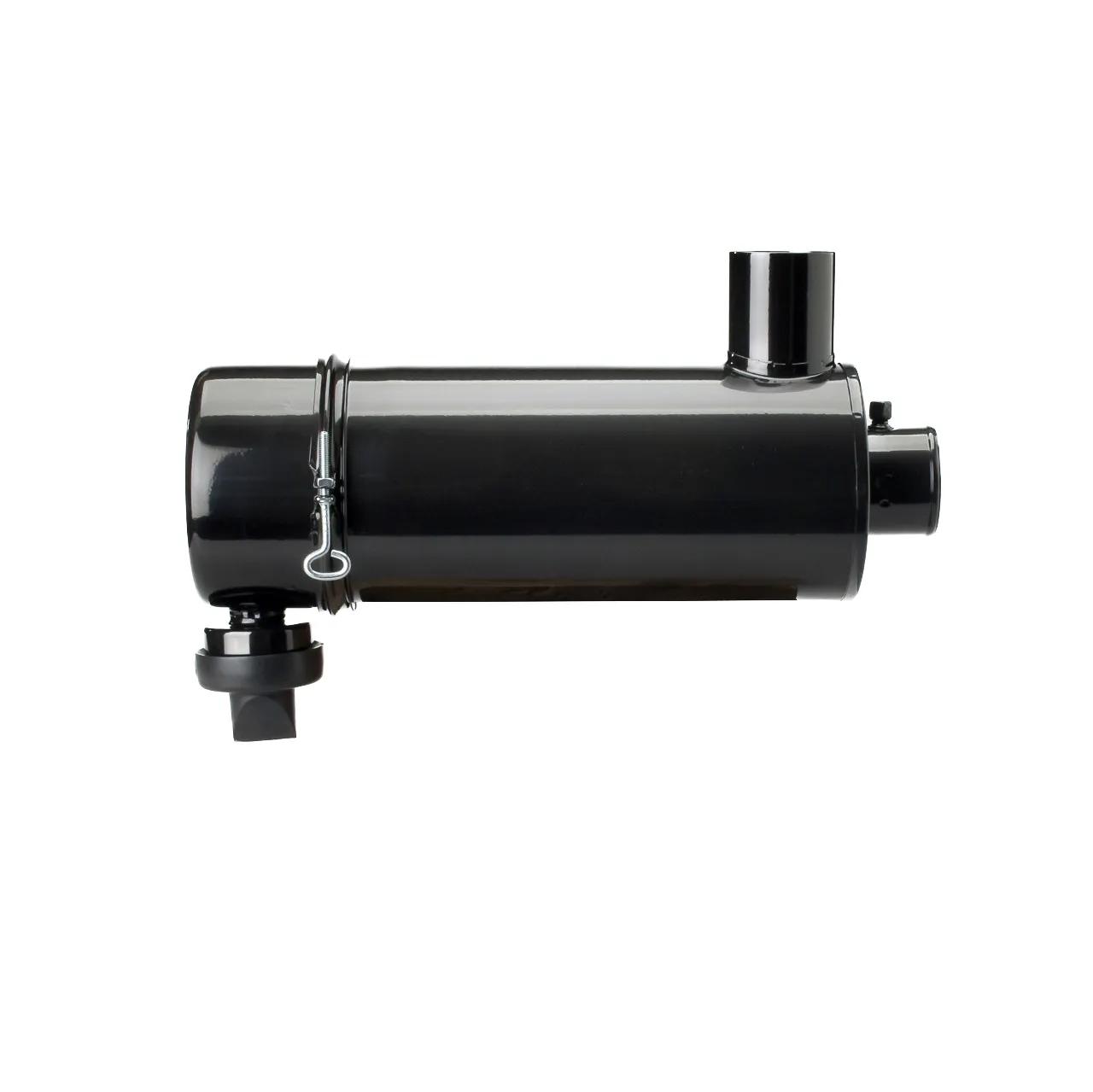

Air Filtration System L: 17,85 in, OD: 3 in, ID: 3 in
#DONG065256
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
6.55 in (166.4 mm) |
| Diameter Range |
6 to 6.99 in |
| Family |
FHG |
| Inlet Diameter |
2.99 in (75.95 mm) |
| Inner Diameter |
3 in (76.2 mm) |
| Length |
17.85 in (453.4 mm) |
| Outlet Diameter |
3 in (76.2 mm) |
| Overall Length |
20.07 in (509.8 mm) |
| Rated Flow High Range |
166 cfm (4.71 m³/min) |
| Rated Flow Low Range |
128 cfm (4 m³/min) |
| Rated Flow Mid Range |
149 cfm (4.22 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
17 to 17.99 in |
| Style |
High Pulsation |
| G065256 |
| 1013968 |
| 42035350 |
| 4700903427 |
| 903427 |
| 925858 |
| 9576G065256 |
| S7630003 |
| 7630003 |
| DN G065256 |
| 020952 |
| 004002857000 |
| AF498 |
| AF499 |
| DONG065256 |
| 4002857000 |
