2 POINTS

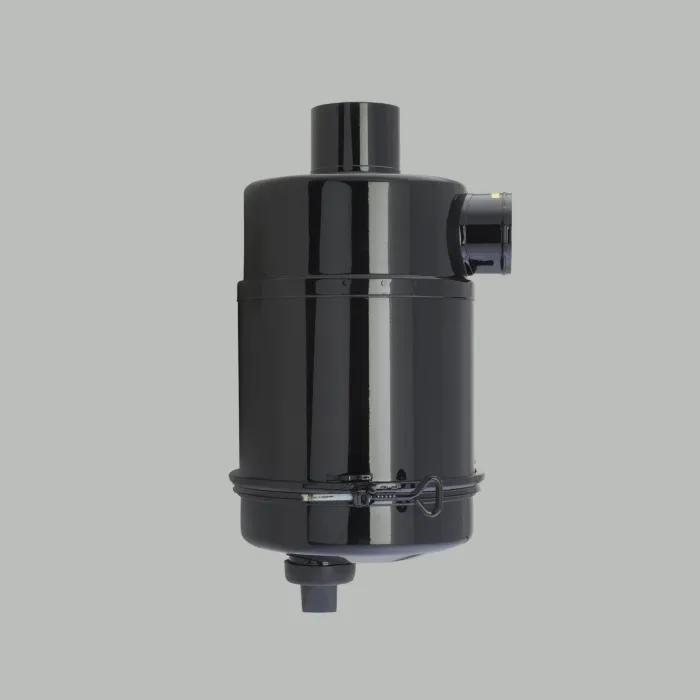

Air Filtration System L: 18,5 in
#DONA120036
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11.8 in (299.8 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | FWA |
| Inlet Diameter | 4.49 in |
| Length | 18.5 in |
| Outlet Diameter | 4 in |
| Rated Flow High Range | 409 cfm (11,6 m³/min) |
| Rated Flow Low Range | 315 cfm (9 m³/min) |
| Rated Flow Mid Range | 367,28 cfm (10,4 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 18 to 18.99 in |
Interchanges & Equivalent parts:
| A120036 |
| ENE0311 |
| 8612999 |
| 2117919 |
| 61727869 |
| 853521276 |
| FWA120036 |
| 25101004 |
| 68101870 |
| 351457 |
| 9576A120036 |
| 81250119 |
| HD2660 |
| 154813 |
| 50266824 |
| 85352176 |
| 18162F8 |
| RD592990 |
| 215044 |
| H2109 |
| 2156001 |
| 21560011 |
| 1727869 |
| 061727869 |
| AF97K |
| DONA120036 |
| PA1646-FN |
| PA1646FN |
| DN A120036 |
| DN A120036 |
