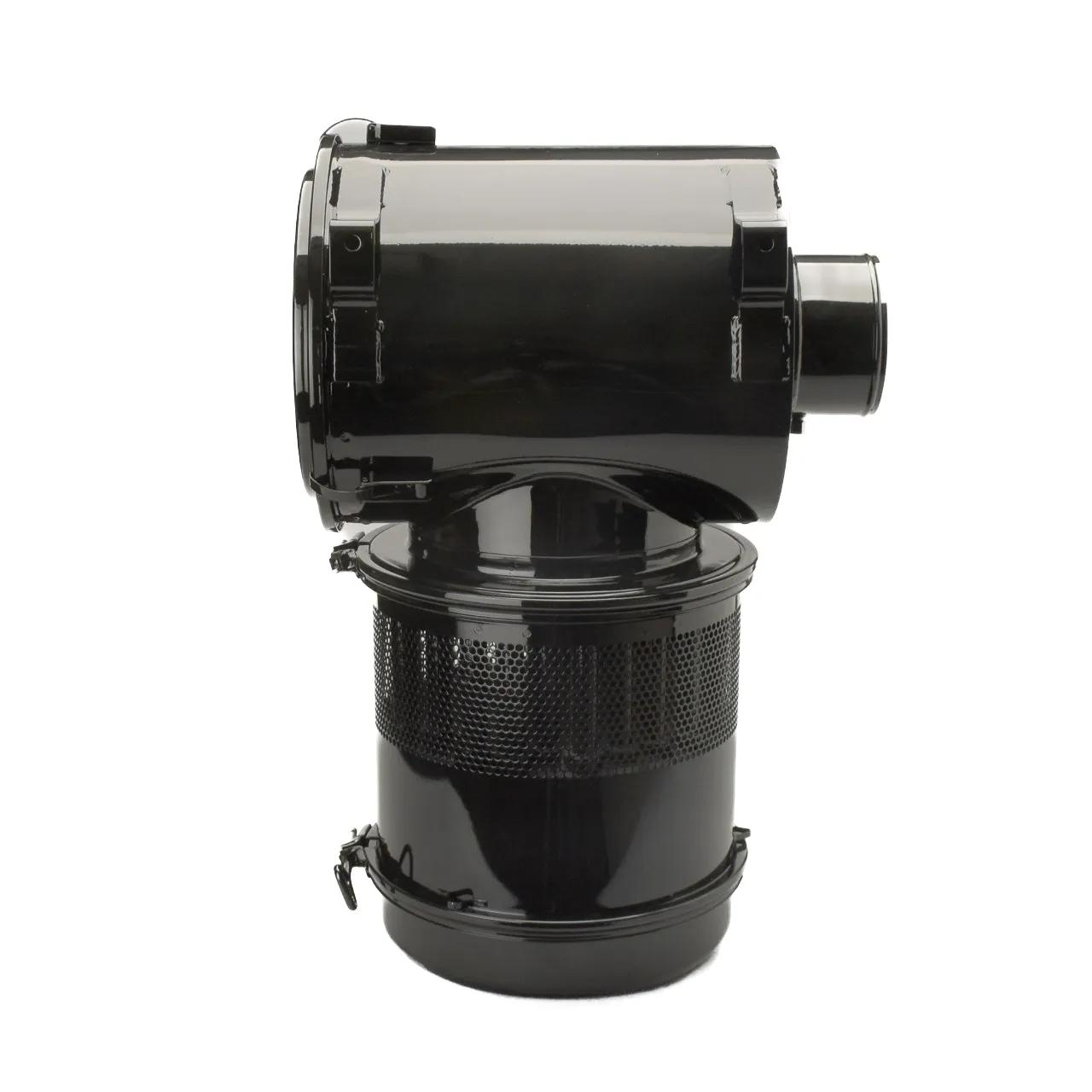

Air Filtration System L: 18,98 in, OD: 7 in
#DONG160679
Product Overview
Why Choose Donaldson?
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 16 in (406.4 mm) |
| Diameter Range | 15 to 15.99 in |
| Family | FRG |
| Inlet Diameter | 7.01 in (178.06 mm) |
| Length | 18.98 in (482.1 mm) |
| Outlet Diameter | 7 in (177.8 mm) |
| Overall Length | 26.33 in (668.8 mm) |
| Rated Flow High Range | 794 cfm (22.5 m³/min) |
| Rated Flow Low Range | 590 cfm (16.7 m³/min) |
| Rated Flow Mid Range | 699.24 cfm (19.8 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 18 to 18.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 3014051098 |
| 3663966 |
| 9576G160078 |
| 80943902 |
| 810145 |
| 810147 |
| DN G160679 |
| DN G160679 |
| 61322075 |
| 1078A69570 |
| 2191-G160679 |
| DONG160679 |
