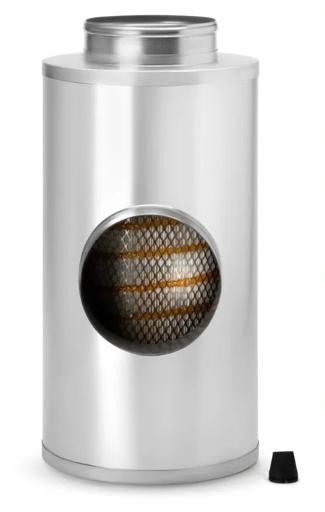

Air Filtration System L: 18 in, OD: 6 in
#DONP636066
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 9-3/4 in (24.77 cm) |
| Diameter Range | 9 to 9.99 in |
| Efficiency | 99.9 |
| Inlet Diameter | 6 in (15.24 cm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 6 in (152.4 mm) |
| Outlet Diameter | 6 in (15.24 cm) |
| Overall Length | 19-1/2 in (49.53 cm) |
| Rated Flow High Range | 801 cfm (22.7 m³/min) |
| Rated Flow Low Range | 502 cfm (14.2 m³/min) |
| Rated Flow Mid Range | 649.79 cfm (18.4 m³/min) |
| Restriction HR | 5.37 in H2O |
| Restriction LR | 2.12 in H2O |
| Restriction MR | 3.56 in H2O |
| Length Range | 18 to 18.99 in |
| Style | Disposable |
Interchanges & Equivalent parts:
| P636066 |
| 46898 |
| 094973004 |
| 94973004 |
