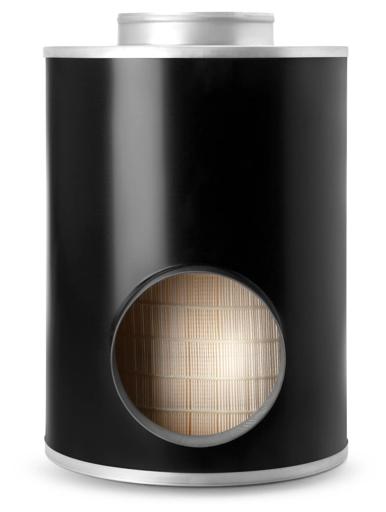

Air Filtration System L: 18 in, OD: 7 in
#DONP636067
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 13-1/2 in (34.29 cm) |
| Diameter Range | 13 to 13.99 in |
| Efficiency | 99.9 |
| Inlet Diameter | 7 in (17.78 cm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 7 in (177.8 mm) |
| Outlet Diameter | 7 in (17.78 cm) |
| Overall Length | 19-1/2 in (49.53 cm) |
| Rated Flow High Range | 1399 cfm (39.62 m³/min) |
| Rated Flow Low Range | 1000 cfm (28.3 m³/min) |
| Rated Flow Mid Range | 1201 cfm (34.01 m³/min) |
| Restriction HR | 5.66 in H2O |
| Restriction LR | 3.04 in H2O |
| Restriction MR | 4.25 in H2O |
| Length Range | 18 to 18.99 in |
| Style | Disposable |
Interchanges & Equivalent parts:
| P636067 |
| 9078 |
| 49078 |
| PA30043 |
| 83078 |
| AF25167 |
| LAF4482 |
| 062891004 |
| 62891004 |
