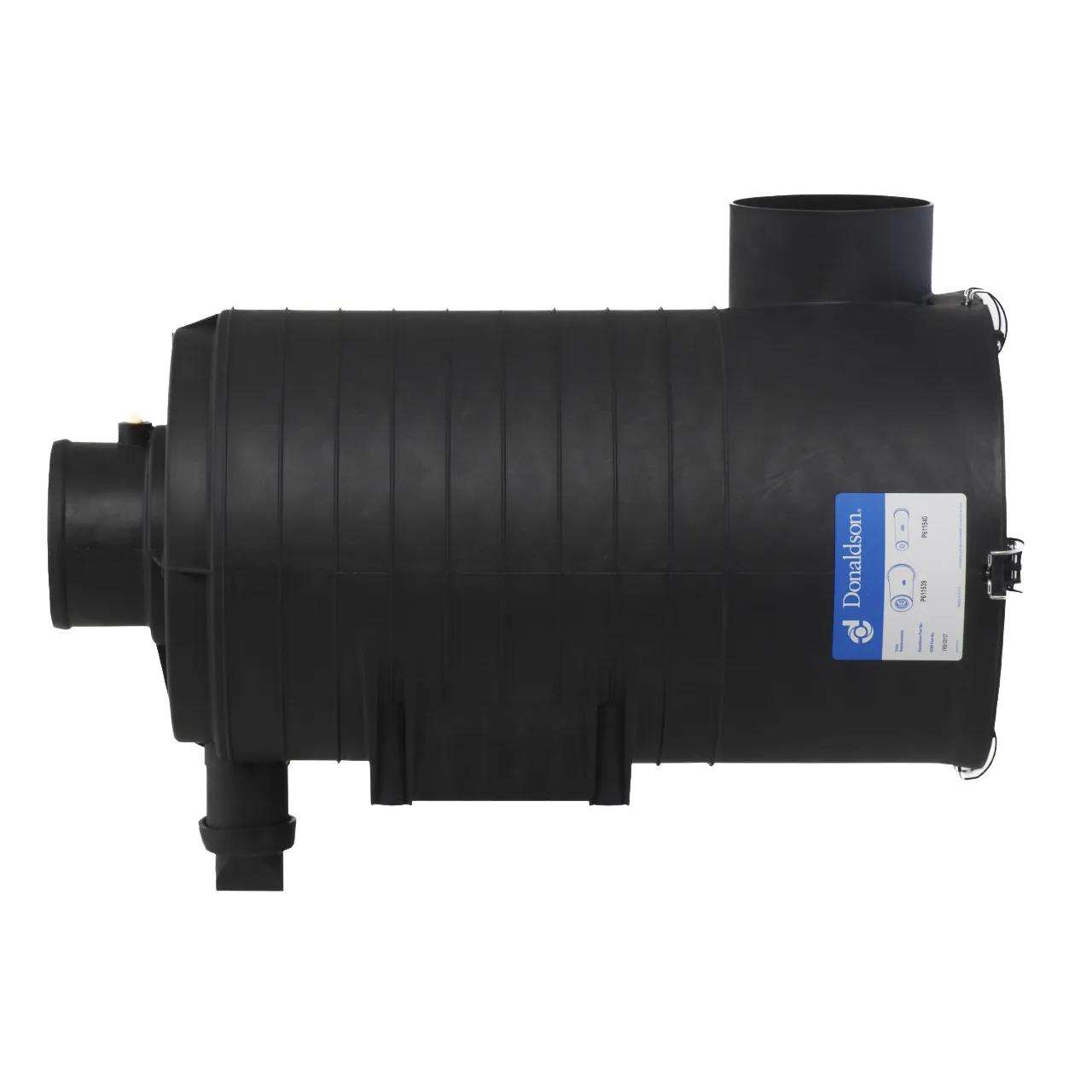

Air Filtration System L: 19,18 in, OD: 4,5 in

#DONB100127

Product Overview


See More
See Less

Features & Benefits


  • Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
  • Products and technology designed to consistently meet required specifications – and your expectations.
  • Superior performance in thousands of on- and off-road applications.

Specifications


Diameter 11.36 in (288.6 mm)
Diameter Range 11 to 11.99 in
Family XRB
Inlet Diameter 5 in
Length 19.18 in
Outlet Diameter 4.5 in
Overall Length 22.26 in
Rated Flow High Range 473 cfm
Rated Flow Low Range 330 cfm
Rated Flow Mid Range 406,12 cfm (11,5 m³/min)
Restriction HR 10 in H2O
Restriction LR 5.99 in H2O
Restriction MR 8 in H2O
Length Range 19 to 19.99 in

Interchanges & Equivalent parts:


B100127
DN B100127
2191-B100127
DONB100127
