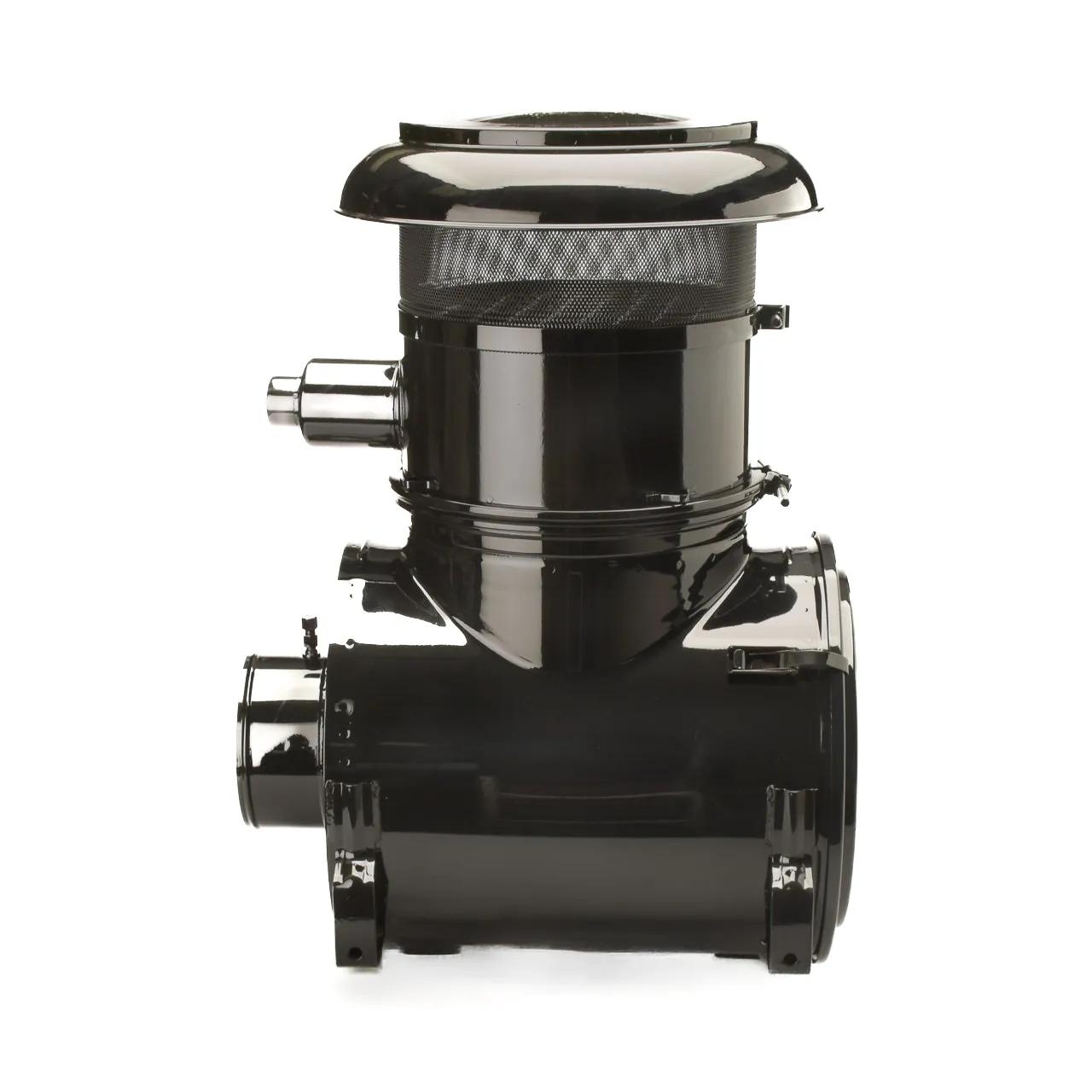

Air Filtration System L: 19,68 in, OD: 7,01 in, ID: 12,99 in
#DONB160071
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 16 in (406.4 mm) |
| Diameter Range | 15 to 15.99 in |
| Family | STB |
| Inlet Diameter | 12.99 in |
| Inner Diameter | 12,99 in (330 mm) |
| Length | 19.68 in |
| Outlet Diameter | 7 in |
| Rated Flow High Range | 1399 cfm (39,62 m³/min) |
| Rated Flow Low Range | 1049 cfm (30 m³/min) |
| Rated Flow Mid Range | 1226 cfm (34,72 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 19 to 19.99 in |
Interchanges & Equivalent parts:
| B160071 |
| 500602 |
| 61327673 |
| 31008800 |
| 2510522 |
| M2510522 |
| 4073728 |
| 5755856 |
| 215046 |
| SC015041030 |
| 613663001 |
| DN B160071 |
| DN B160071 |
| 0061327673 |
| 2191-B160071 |
| 87128 |
| 87132 |
| AF240 |
| AF241 |
| DONB160071 |
| PA1894XP |
