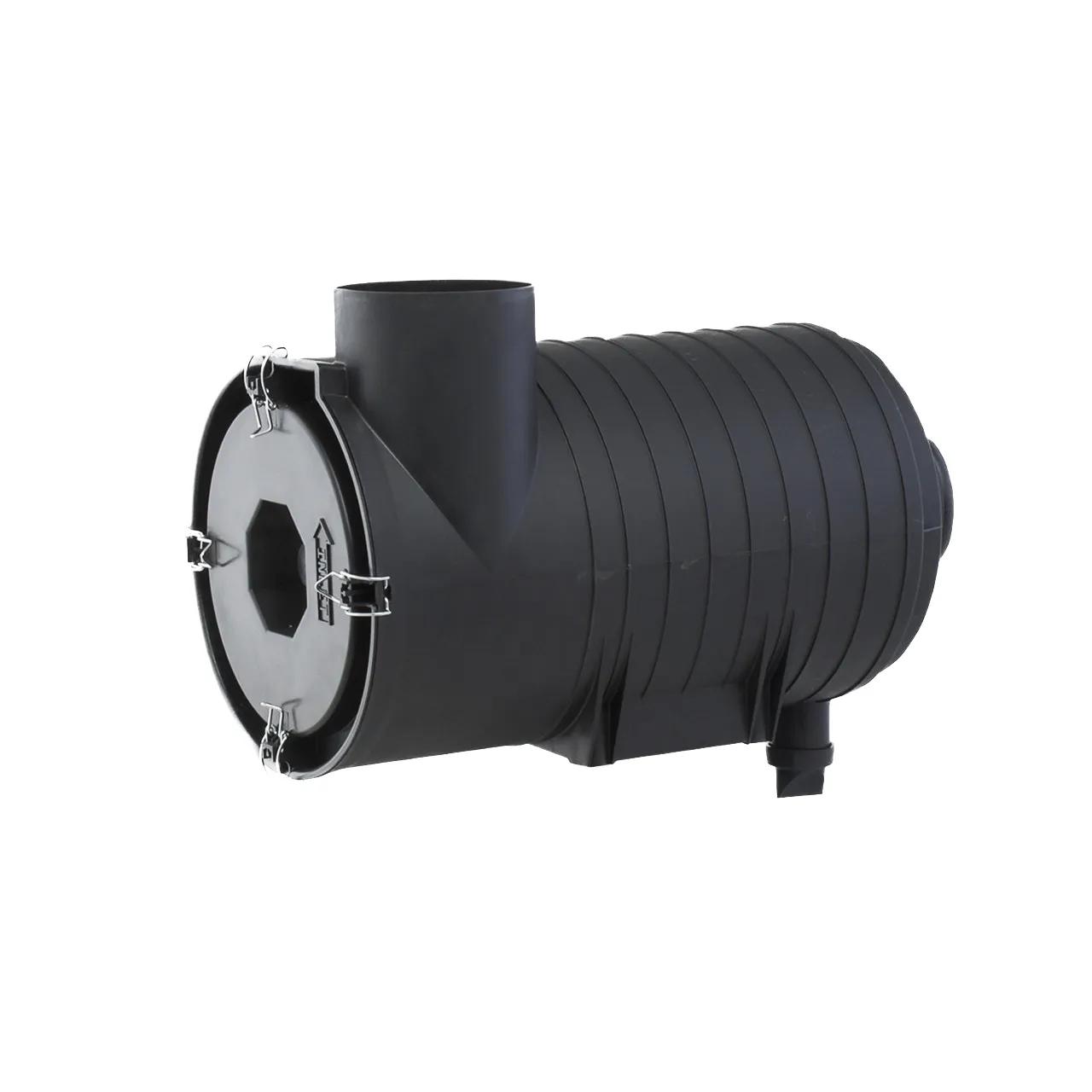

Air Filtration System L: 20,61 in, OD: 5,05 in
#DONB120470
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
13 in (330.2 mm) |
| Diameter Range |
13 to 13.99 in |
| Family |
XRB |
| Inlet Diameter |
5.98 in (151.9 mm) |
| Length |
20.61 in (523.5 mm) |
| Outlet Diameter |
5.05 in (128.1 mm) |
| Overall Length |
23.68 in (601.5 mm) |
| Rated Flow High Range |
628 cfm (17,8 m³/min) |
| Rated Flow Low Range |
491 cfm (13,9 m³/min) |
| Rated Flow Mid Range |
565,04 cfm (16 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5,99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
20 to 20.99 in |
| B120470 |
| F7A01400 |
| F7A04400 |
| 0313AAV00060N |
| LZ0213320 |
| DN B120470 |
| 2191-B120470 |
| DONB120470 |
