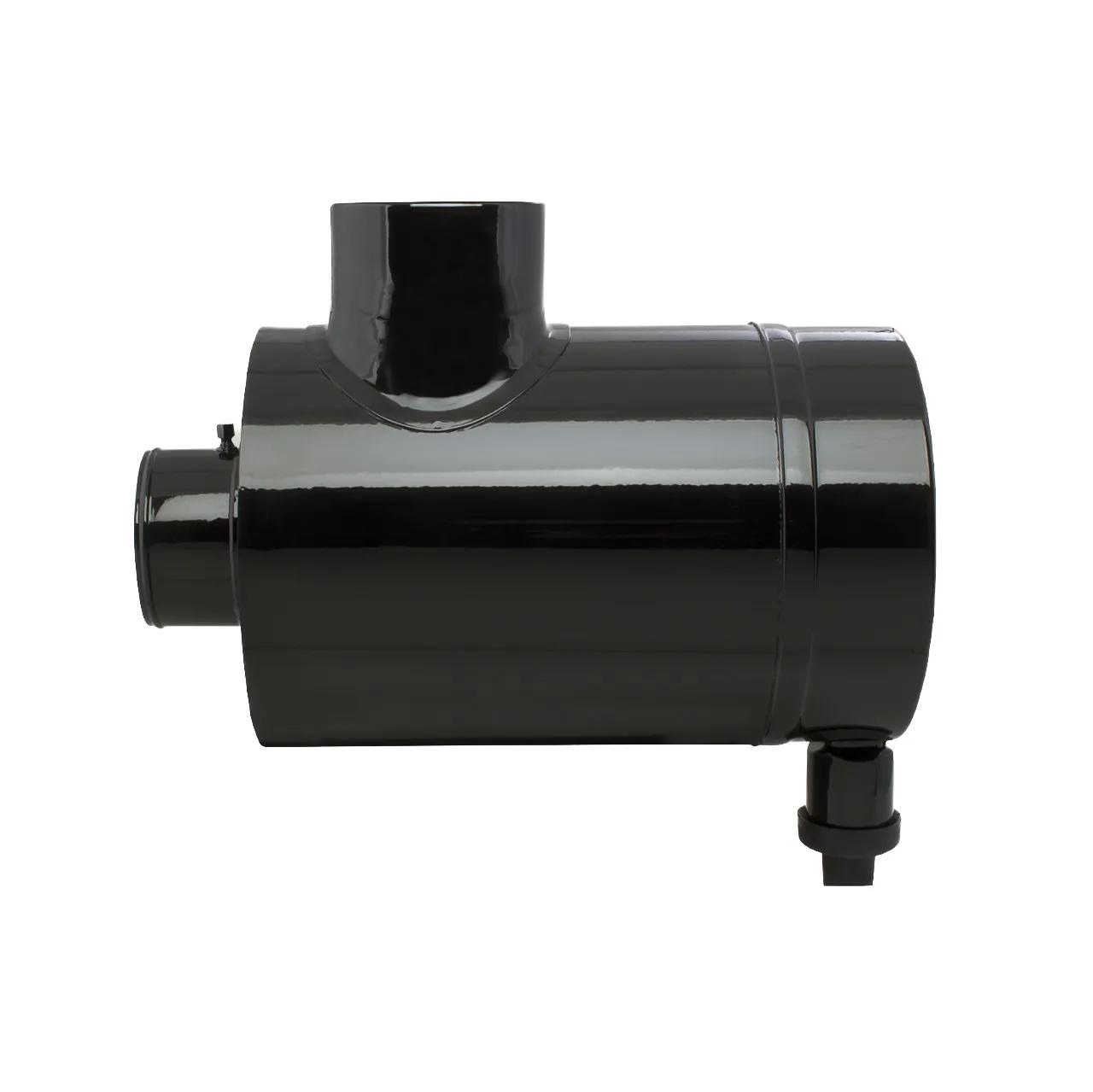

Air Filtration System L: 20,87 in, OD: 6 in
#DONG140195
Product Overview
AIR CLEANER, FVG CYCLOFLOW
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 13.95 in (354.4 mm) |
| Diameter Range | 13 to 13.99 in |
| Family | FVG |
| Inlet Diameter | 7.01 in (178.06 mm) |
| Length | 20.87 in (530.1 mm) |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 24.75 in (628.7 mm) |
| Rated Flow High Range | 911 cfm (25,8 m³/min) |
| Rated Flow Low Range | 689 cfm (19,5 m³/min) |
| Rated Flow Mid Range | 808,71 cfm (22,9 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 20 to 20.99 in |
Interchanges & Equivalent parts:
| 520706 |
| 543SMM052 |
| AG520706 |
| 309605338 |
| 5540477900 |
| NG140195 |
| 401336000 |
| 4013363000 |
| 2120509292 |
| 853521266 |
| 102B0065 |
| E0302857 |
| Q15124 |
| 2515380 |
| 50H0185 |
| 9576G140195 |
| DNG140195 |
| 7304000637 |
| 35831310 |
| 3585130 |
| 35851310 |
| 39844113 |
| 51619203 |
| 391081141 |
| 176916 |
| GM41123 |
| 19550 |
| 29321323 |
| 1401537 |
| DMG140195 |
| 319258 |
| 5190020042 |
| 2403862 |
| 605309001 |
| 554077900 |
| 01401537 |
| 046956 |
| 00401336000 |
| 004013363000 |
| 2191-G140195 |
| AF666 |
| AF667 |
| DONG140195 |
| 1011226 |
| DN G140195 |
| DN G140195 |
| 46956 |
