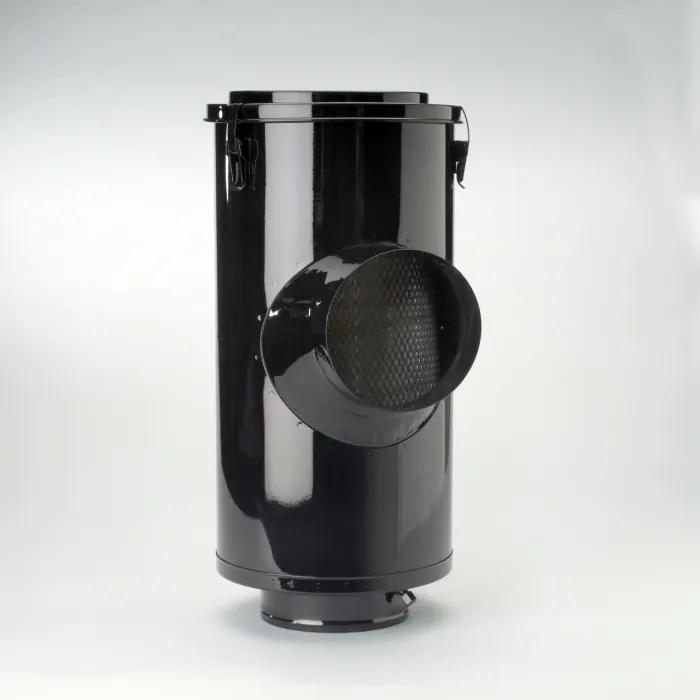

Air Filtration System L: 22,28 in
#DONG112504
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
11 in (279.4 mm) |
| Diameter Range |
11 to 11.99 in |
| Family |
ECG |
| Inlet Diameter |
7.01 in (178.06 mm) |
| Length |
22.28 in (566 mm) |
| Outlet Diameter |
7 in (177.8 mm) |
| Rated Flow High Range |
1600 cfm (45,31 m³/min) |
| Rated Flow Low Range |
1201 cfm (35 m³/min) |
| Rated Flow Mid Range |
1399 cfm (39,62 m³/min) |
| Restriction HR |
10 In H2O |
| Restriction LR |
5.98 IN H2O |
| Restriction MR |
7.99 IN H2O |
| Length Range |
22 to 22.99 in |
| G112504 |
| 102B0070 |
| ECG112504 |
| DNG112504 |
| 2004450C91 |
| ECG112504BULK |
| 3569333 |
| 514838 |
| 0855HH2 |
| 1099HH2001 |
| RD2229 |
| 220010256 |
| 220013429 |
| DDE G112504 |
| DN G112504 |
| DN G112504 |
| 0881101011 |
| 0514838 |
| 060742501 |
| 102B-0070 |
| 2191-G112504 |
| 22001-0256 |
| AF785 |
| DONG112504 |
| PA2715 |
| 60742501 |
