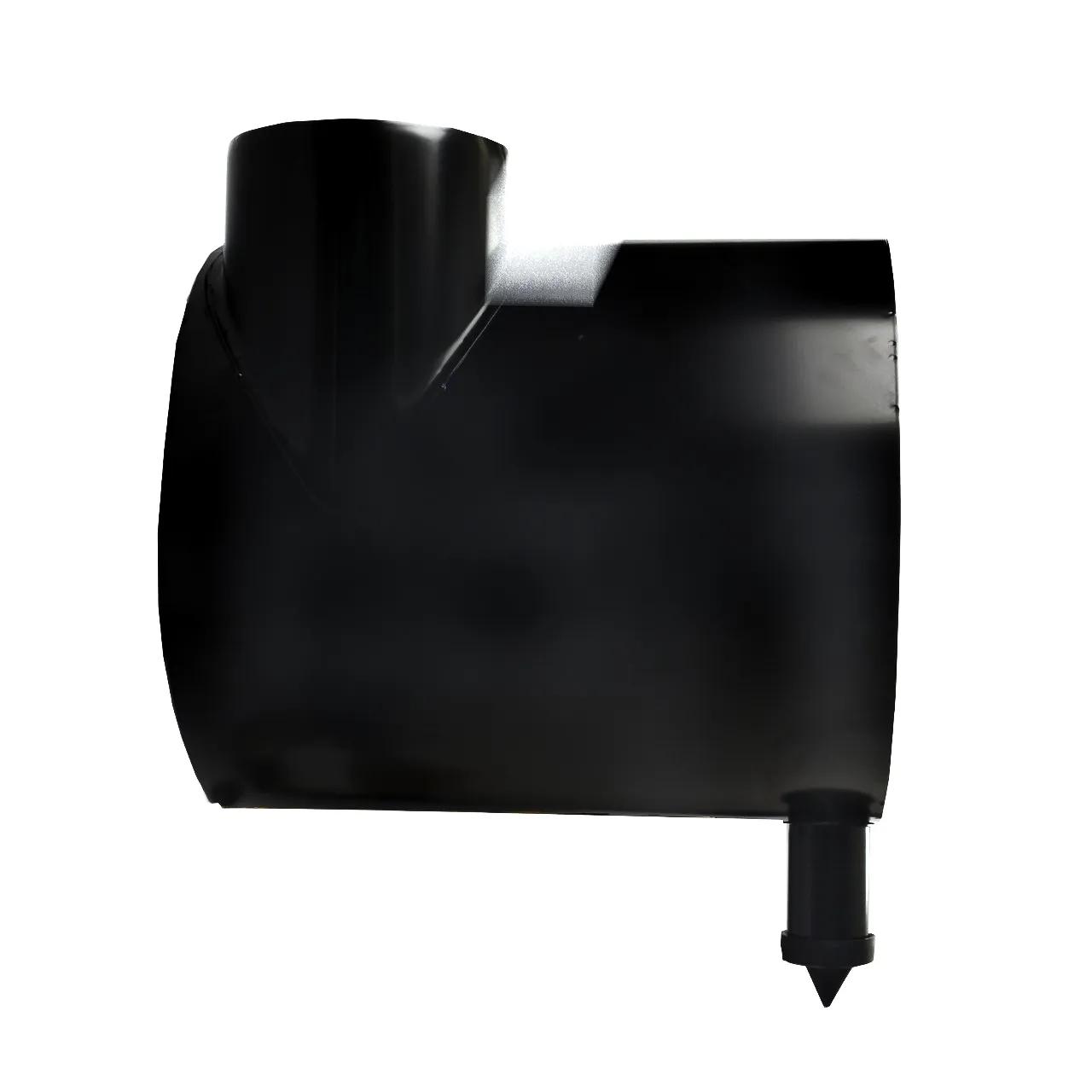

Air Filtration System L: 24,13 in, OD: 10 in, ID: 10 in
#DONG210007
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
21.5 in (546.1 mm) |
| Diameter Range |
21 to 21.99 in |
| Family |
FTG |
| Inlet Diameter |
10 in (254 mm) |
| Inner Diameter |
10 in (254 mm) |
| Length |
24.13 in (613 mm) |
| Outlet Diameter |
10 in (254 mm) |
| Overall Length |
27.68 in (703.1 mm) |
| Rated Flow High Range |
1915 cfm (54,23 m³/min) |
| Rated Flow Low Range |
1448 cfm (42 m³/min) |
| Rated Flow Mid Range |
1696 cfm (48,03 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5,99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
24 to 24.99 in |
| G210007 |
| FTG210007 |
| 1610634000 |
| 2416668 |
| 4226289 |
| 550948614 |
| 20604 |
| A029G993 |
| 3734156 |
| 30801033501 |
| DN G210007 |
| 020604 |
| 04226289 |
| 2191-G210007 |
| DONG210007 |
See more
