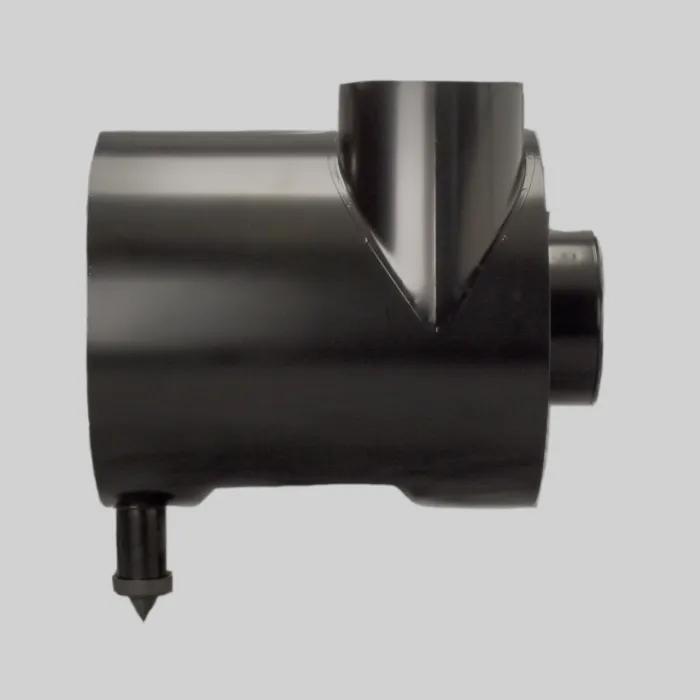

Air Filtration System L: 24,13 in, OD: 10 in, ID: 10 in
#DONG210010
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 21.5 in (546.1 mm) |
| Diameter Range | 21 to 21.99 in |
| Family | FTG |
| Inlet Diameter | 10 in |
| Inner Diameter | 10 in (254 mm) |
| Length | 24.13 in |
| Outlet Diameter | 10 in |
| Overall Length | 27.68 in |
| Rated Flow High Range | 1915 cfm (54,23 m³/min) |
| Rated Flow Low Range | 1448 cfm (42 m³/min) |
| Rated Flow Mid Range | 1696 cfm (48,03 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 24 to 24.99 in |
Interchanges & Equivalent parts:
| G210010 |
| FTG210010 |
| 3633482 |
| 190593 |
| DN G210010 |
| 2191-G210010 |
| DONG210010 |
