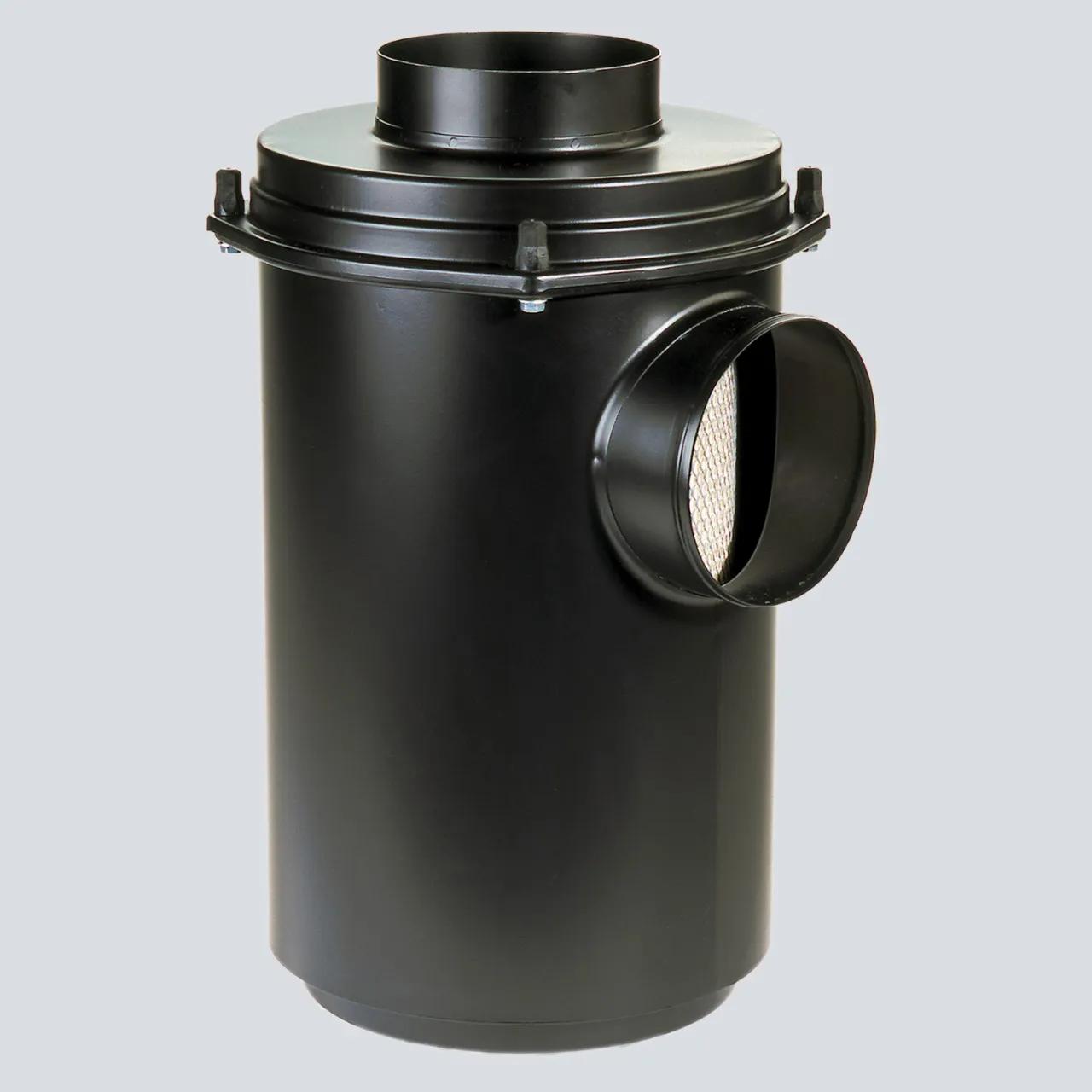

Air Filtration System L: 24,38 in, OD: 7 in
#DONA150138
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 15 in (381 mm) |
| Diameter Range | 14 to 14.99 in |
| Family | ERA |
| Inlet Diameter | 7.01 in (178.06 mm) |
| Length | 24.38 in (619.3 mm) |
| Outlet Diameter | 7 in (177.8 mm) |
| Overall Length | 29.11 in (739.4 mm) |
| Rated Flow High Range | 1350 cfm (38.23 m³/min) |
| Rated Flow Low Range | 1046 cfm (30 m³/min) |
| Rated Flow Mid Range | 1205 cfm (34.13 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 24 to 24.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| A150138 |
| 300101005 |
| 9576A150128 |
| DNA150128 |
| EBA150128 |
| ERA150138 |
| 2191A150128 |
| DN A150138 |
| DN A150138 |
| 2191-A150138 |
| DONA150138 |
