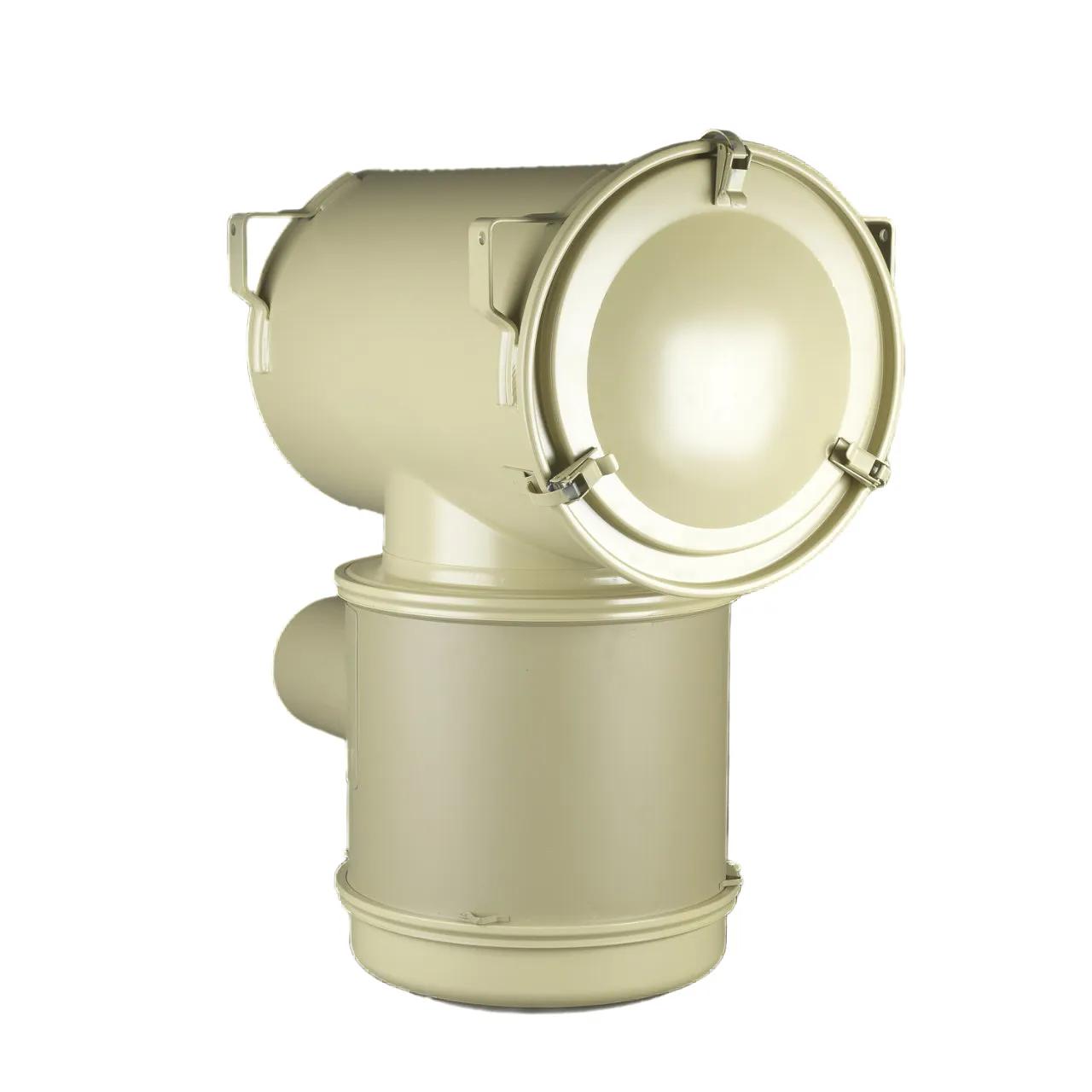

Air Filtration System L: 24 in, OD: 8 in, W: 17,99 in
#DONG161020
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
16 in (406.4 mm) |
| Diameter Range |
15 to 15.99 in |
| Family |
STG |
| Inlet Diameter |
5.98 in (151.9 mm) |
| Length |
24 in (609.6 mm) |
| Outlet Diameter |
8 in (203.2 mm) |
| Overall Length |
29.56 in (750.9 mm) |
| Rated Flow High Range |
1466 cfm (41.52 m³/min) |
| Rated Flow Low Range |
1413 cfm (41 m³/min) |
| Rated Flow Mid Range |
1307 cfm (37.02 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
24 to 24.99 in |
| Style |
Tubular |
| Width |
17.99 in (457 mm) |
| G161020 |
| 226636 |
| 3018051282 |
| P05297 |
| P1023185101 |
| P1073185101 |
| 64133050 |
| 5606336 |
| 460C028 |
| DN G161020 |
| DN G161020 |
| 2191-G161020 |
| AF658 |
| AF659 |
| DONG161020 |
| G161010 |
| PA2562XP |
See more
