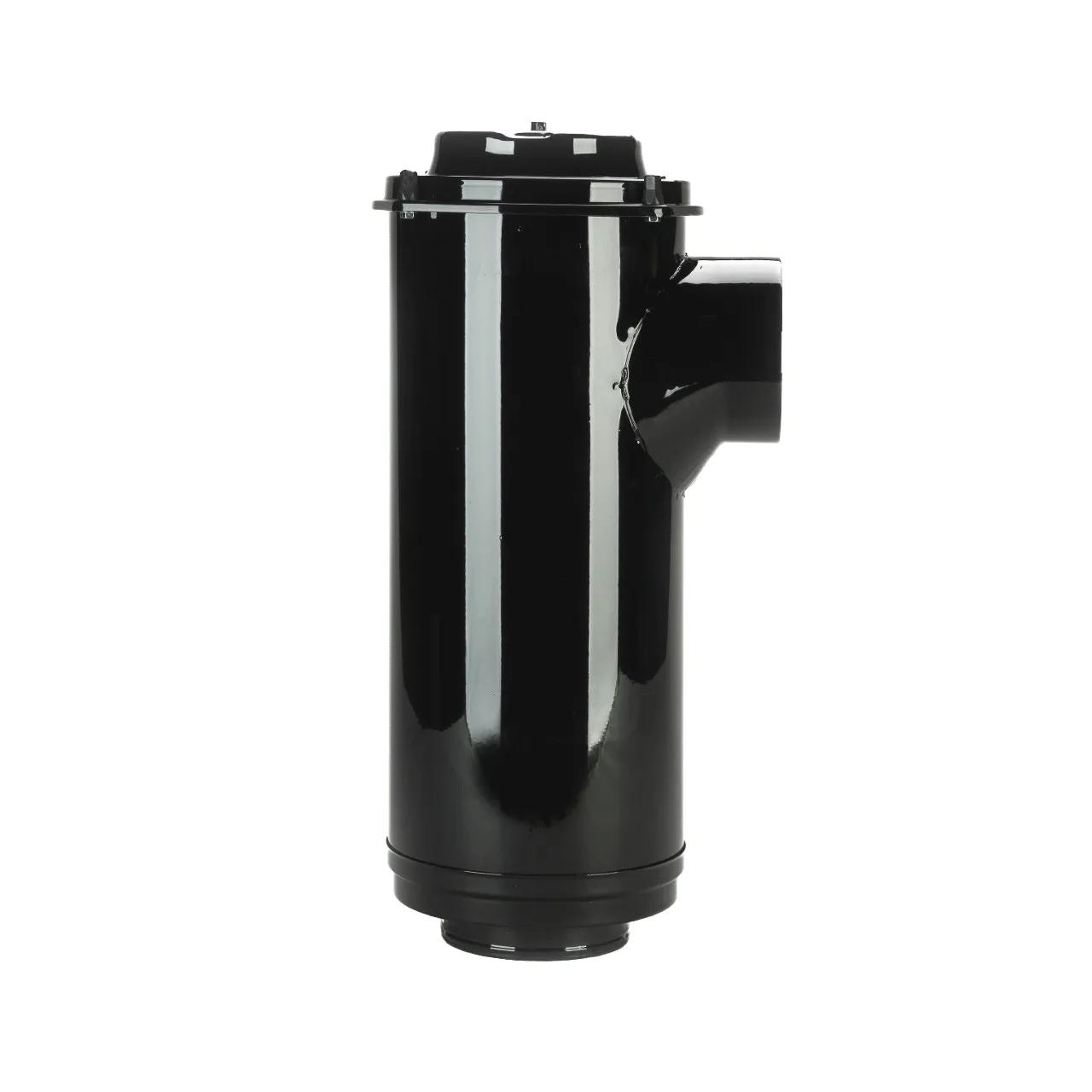

Système de filtration d'air H: 25,62 po, DE: 7 po,
#DONG112001
- La famille de filtres à air ECG Konepac offre un débit d'air élevé dans une taille compacte, pour une installation horizontale
- Le filtre en forme de cône permet d'utiliser un maximum de médias dans un petit format
- Boîtier durable résistant aux conditions difficiles
| Diameter |
11 in (279.4 mm) |
| Diameter Range |
11 to 11.99 in |
| Family |
ECG |
| Inlet Diameter |
7.01 in (178.06 mm) |
| Length |
25.62 in (650.8 mm) |
| Outlet Diameter |
7 in (177.8 mm) |
| Overall Length |
30.2 in (767.1 mm) |
| Rated Flow High Range |
1424 cfm (40.33 m³/min) |
| Rated Flow Low Range |
1099 cfm (32 m³/min) |
| Rated Flow Mid Range |
1300 cfm (36.82 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
25 to 25.99 in |
| Style |
Cone |
| G112001 |
| 7311200100 |
| ECG112001 |
| 99707000411 |
| 28H1041 |
| DNG112001 |
| 3470690 |
| HD1900 |
| 21822 |
| 810123 |
| DN G112001 |
| DN G112001 |
| 021822 |
| 00810123 |
| AF790 |
| DONG112001 |
| PA2660 |
