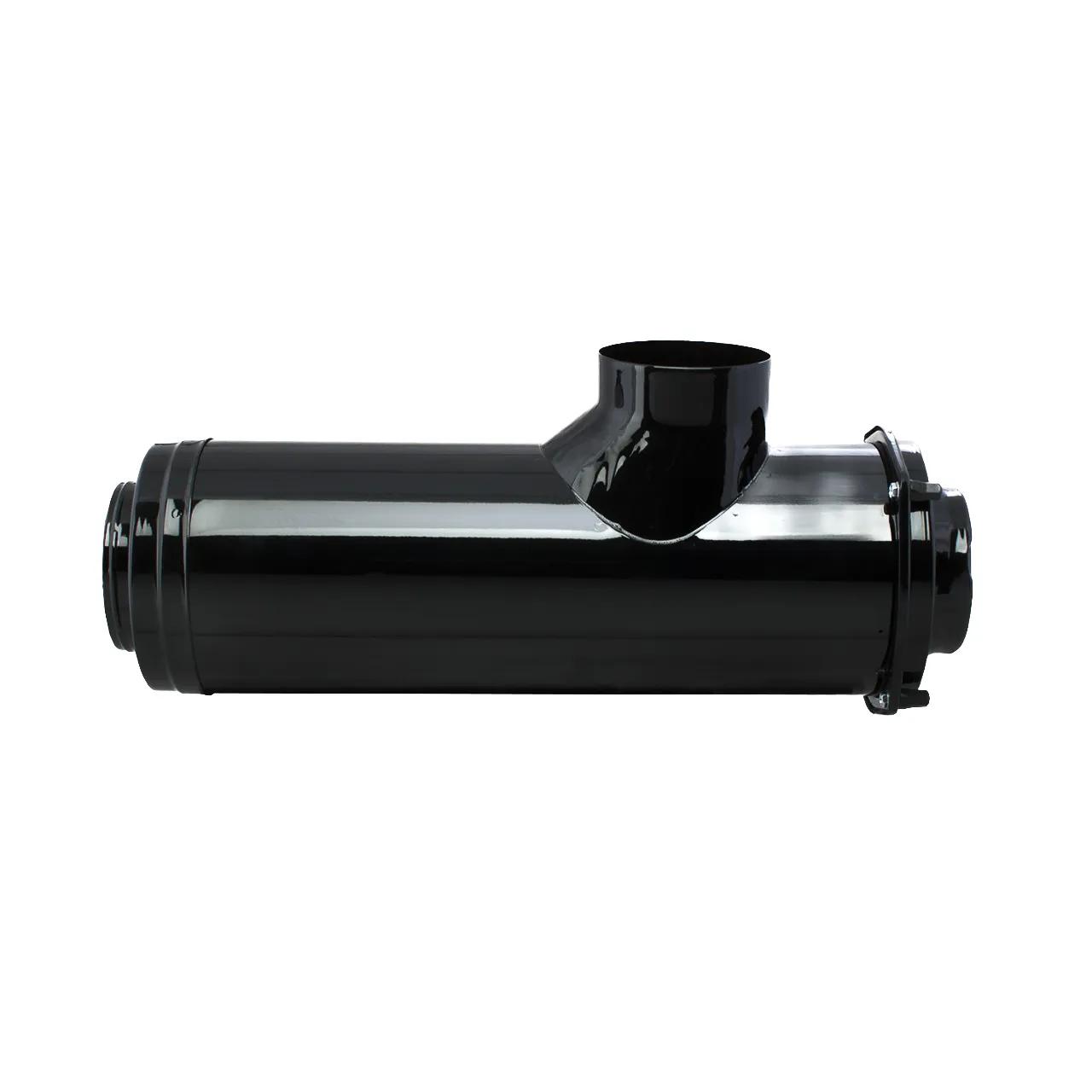

Air Filtration System L: 25,63 in, OD: 6 in
#DONG092001
- ECG Konepac air cleaner family provides high airflow in compact size, for horizontal installation
- Cone shaped filter allows maximum media in a small package
- Durable housing withstands rugged conditions
| Diameter |
9 in (228.6 mm) |
| Diameter Range |
8 to 8.99 in |
| Family |
ECG |
| Inlet Diameter |
5.98 in (151.9 mm) |
| Length |
25.63 in (651.1 mm) |
| Outlet Diameter |
6 in (152.4 mm) |
| Overall Length |
29.81 in (757.2 mm) |
| Rated Flow High Range |
999 cfm (28.3 m³/min) |
| Rated Flow Low Range |
774 cfm (21.9 m³/min) |
| Rated Flow Mid Range |
879.34 cfm (24.9 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
25 to 25.99 in |
| Style |
Cone |
| G092001 |
| 102A0237 |
| 102A237 |
| ECG092001 |
| DNG092001 |
| 3186503 |
| VTECG092001 |
| AF741 |
| DN G092001 |
| DN G092001 |
| DONG092001 |
| PA3478 |
