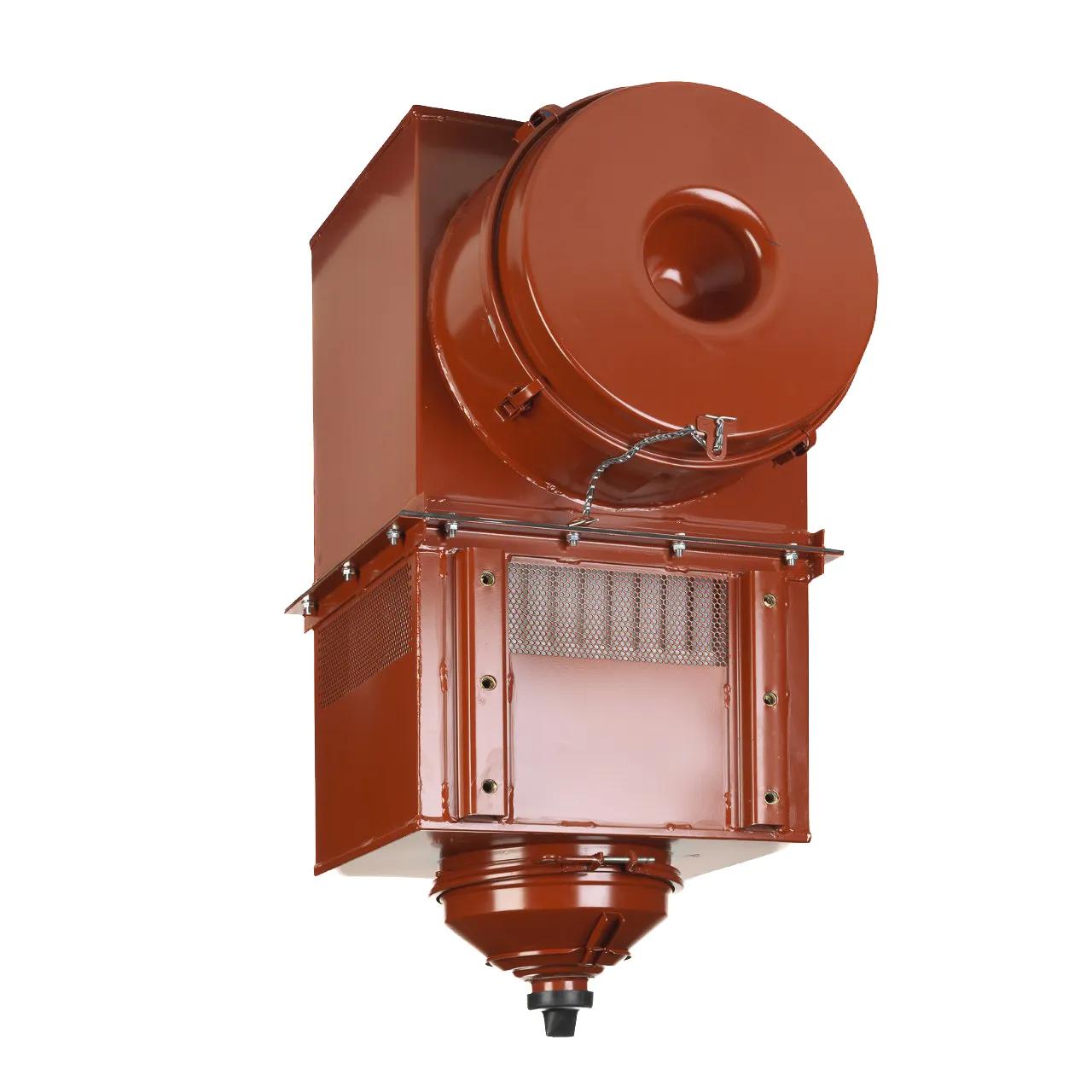

Air Filtration System L: 26,18 in, OD: 10 in, W: 20,98 in
#DONG200086
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Depth |
15.75 in (400.1 mm) |
| Diameter |
19.68 in (499.9 mm) |
| Diameter Range |
10 to 10.99 in |
| Family |
SRG |
| Length |
26.18 in (665 mm) |
| Outlet Diameter |
10 in (254 mm) |
| Overall Length |
29 in (736.6 mm) |
| Rated Flow High Range |
2059 cfm (58.31 m³/min) |
| Rated Flow Low Range |
1780 cfm (51 m³/min) |
| Restriction HR |
8 in H2O (203 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Length Range |
26 to 26.99 in |
| Style |
Vertical |
| Width |
20.98 in (532.9 mm) |
| G200086 |
| PC2557 |
| 438943 |
| DN G200086 |
| 2191-G200086 |
| DONG200086 |
