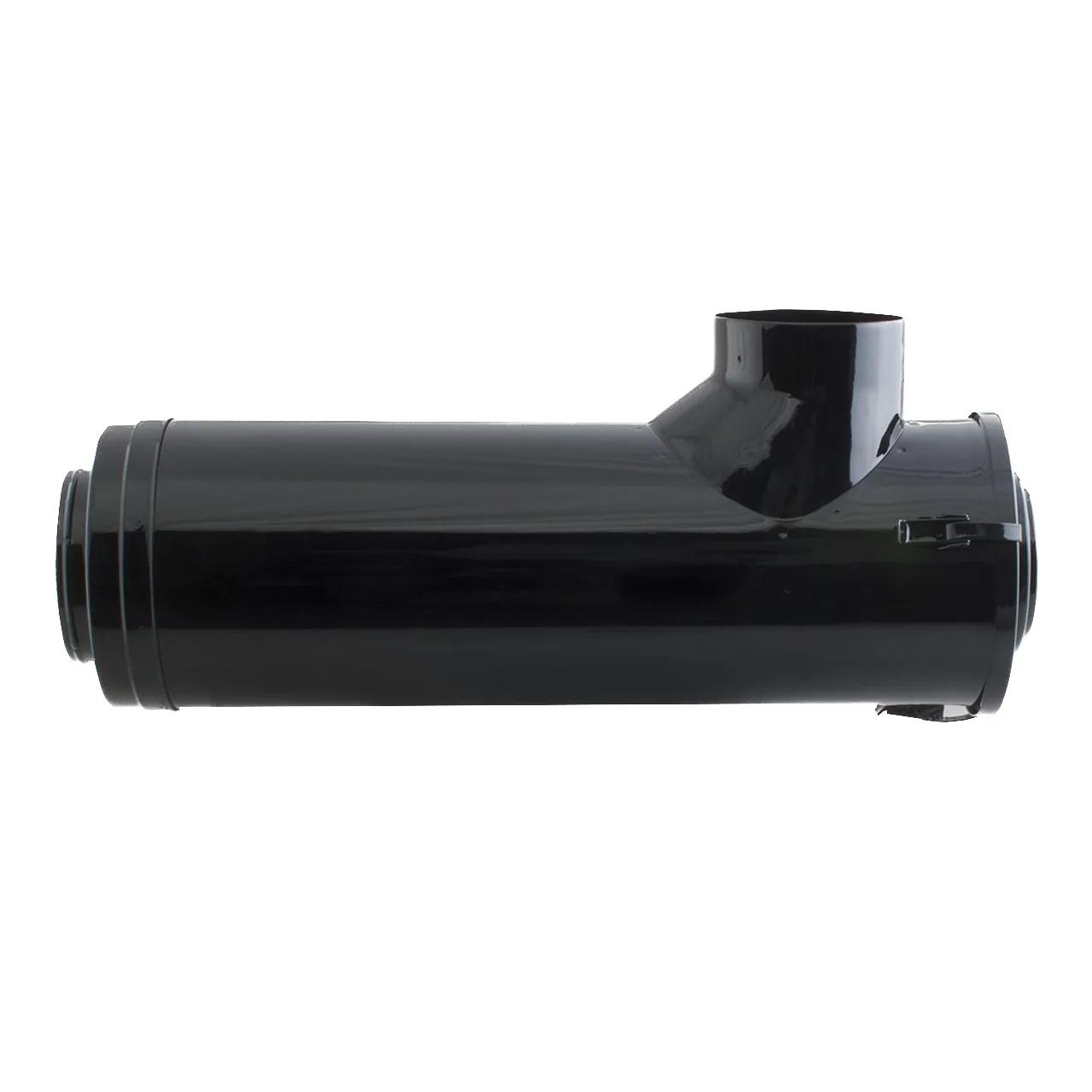

Air Filtration System L: 27,25 in, OD: 6 in
#DONG092401
Specifications
| Diameter | 9.02 in (229.2 mm) |
| Diameter Range | 8 to 9 in |
| Family | ECG |
| Inlet Diameter | 5.98 in (151.9 mm) |
| Length | 27.25 in (692.2 mm) |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 29.88 in (759 mm) |
| Rated Flow High Range | 1039 cfm (29.43 m³/min) |
| Rated Flow Low Range | 799 cfm (22.6 m³/min) |
| Rated Flow Mid Range | 925.25 cfm (26.2 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Standard Length | 27 to 28 in |
| Style | Cone |
Interchanges & Equivalent parts:
AF2083, AF741, CA6511, DDE G092401, DN G092401, DN G092401, DONG092401, G092401, 0001402634, 001402634, 01402634, 102B0068, 1331870, 1365120, 1402634, 2191G092401, 9576G092401, C7620, CA6511, DN G092401, AF2083, DN G092401, AF741, DDE G092401, DONG092401, 001402634, 2191G092401, 1402634, C7620, 102B0068, 0001402634, 9576G092401, 1331870, 01402634, 1365120, G092401
