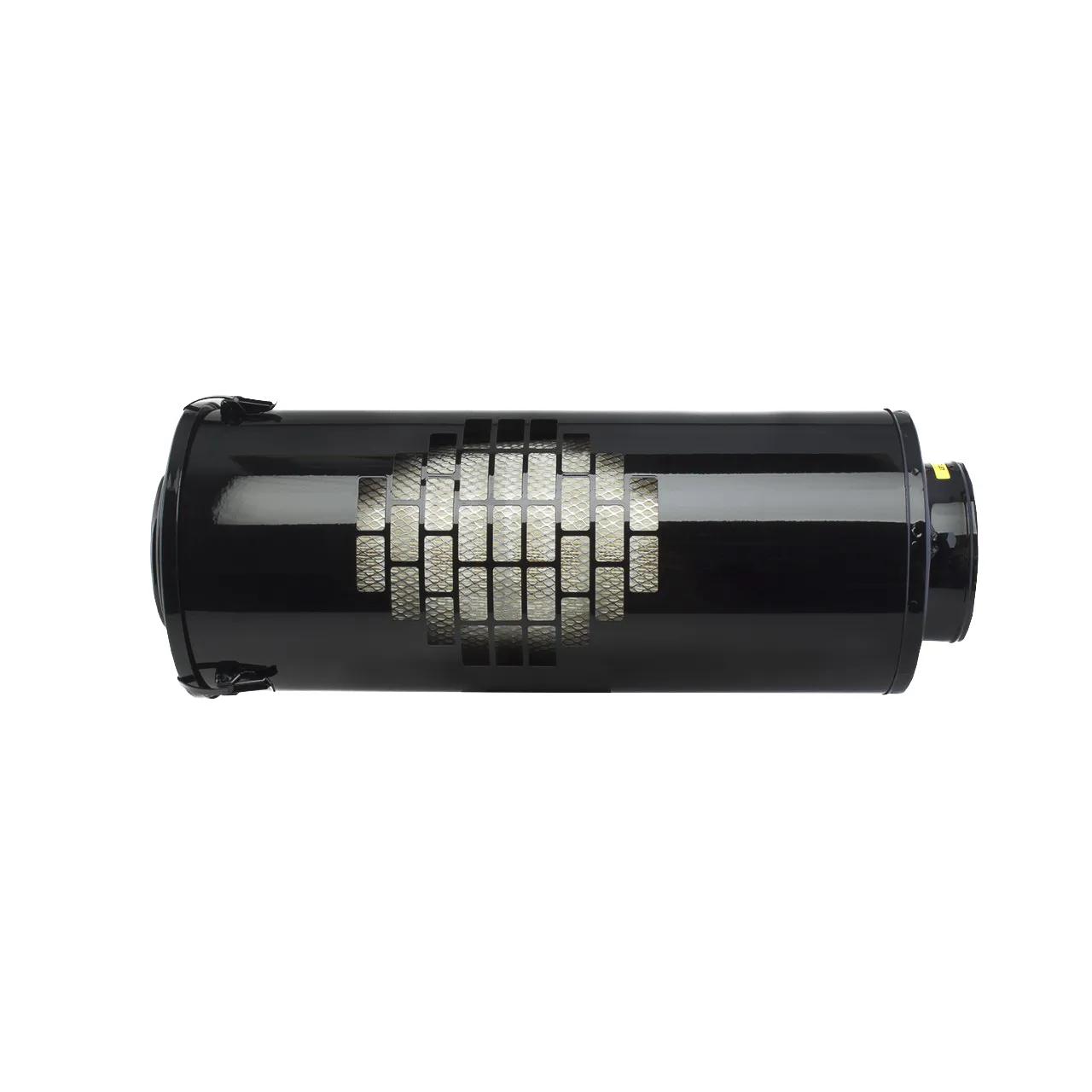

Air Filtration System L: 27,25 in, OD: 7 in
#DONG112417
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 11 in (279.4 mm) |
| Diameter Range | 11 to 11.99 in |
| Family | ECG |
| Inlet Diameter | 5 in (12.7 cm) |
| Length | 27.25 in |
| Outlet Diameter | 7 in |
| Overall Length | 30.7 in (779.8 mm) |
| Rated Flow High Range | 1600 cfm |
| Rated Flow Low Range | 1201 cfm |
| Rated Flow Mid Range | 1399 cfm |
| Restriction HR | 10 in H2O |
| Restriction LR | 5.99 in H2O |
| Restriction MR | 8 in H2O |
| Length Range | 27 to 27.99 in |
Interchanges & Equivalent parts:
| G112417 |
| DNG112417 |
| DN G112417 |
| 2191-G112417 |
| AF790 |
| DONG112417 |
| DN G112417 |
