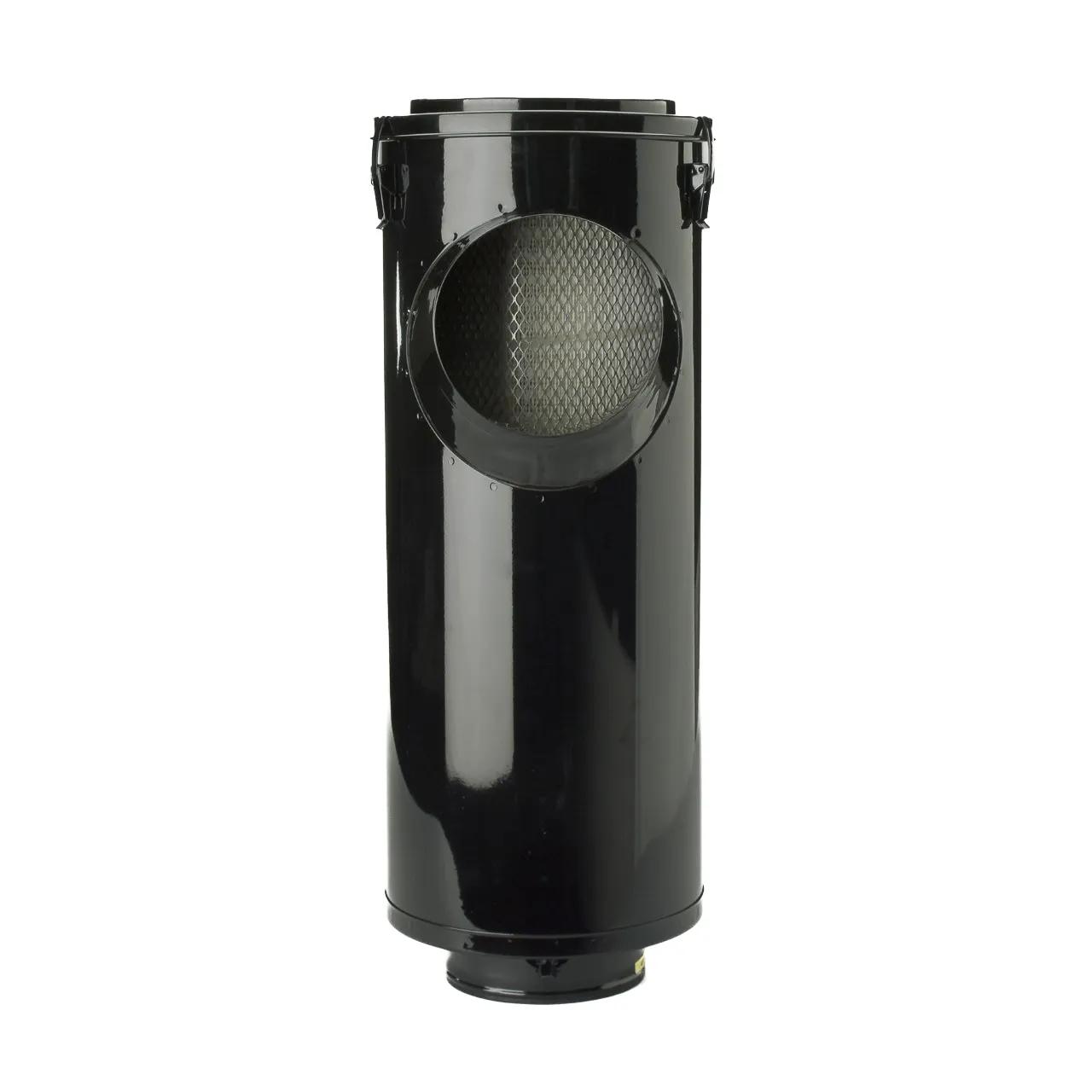

Air Filtration System L: 27,25 in, OD: 7 in
#DONG112501
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Diameter |
11 in (279.4 mm) |
| Diameter Range |
11 to 11.99 in |
| Family |
ECG |
| Inlet Diameter |
7.01 in (178.06 mm) |
| Length |
27.25 in (692.2 mm) |
| Outlet Diameter |
7 in (177.8 mm) |
| Overall Length |
30.3 in (769.7 mm) |
| Rated Flow High Range |
1600 cfm (45,31 m³/min) |
| Rated Flow Low Range |
1201 cfm (35 m³/min) |
| Rated Flow Mid Range |
1399 cfm (39,62 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5,99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
27 to 27.99 in |
| G112501 |
| AU118124 |
| ECG112501 |
| 1402463 |
| 01402463 |
| AF797 |
| DONG112501 |
| DN G112501 |
| DN G112501 |
