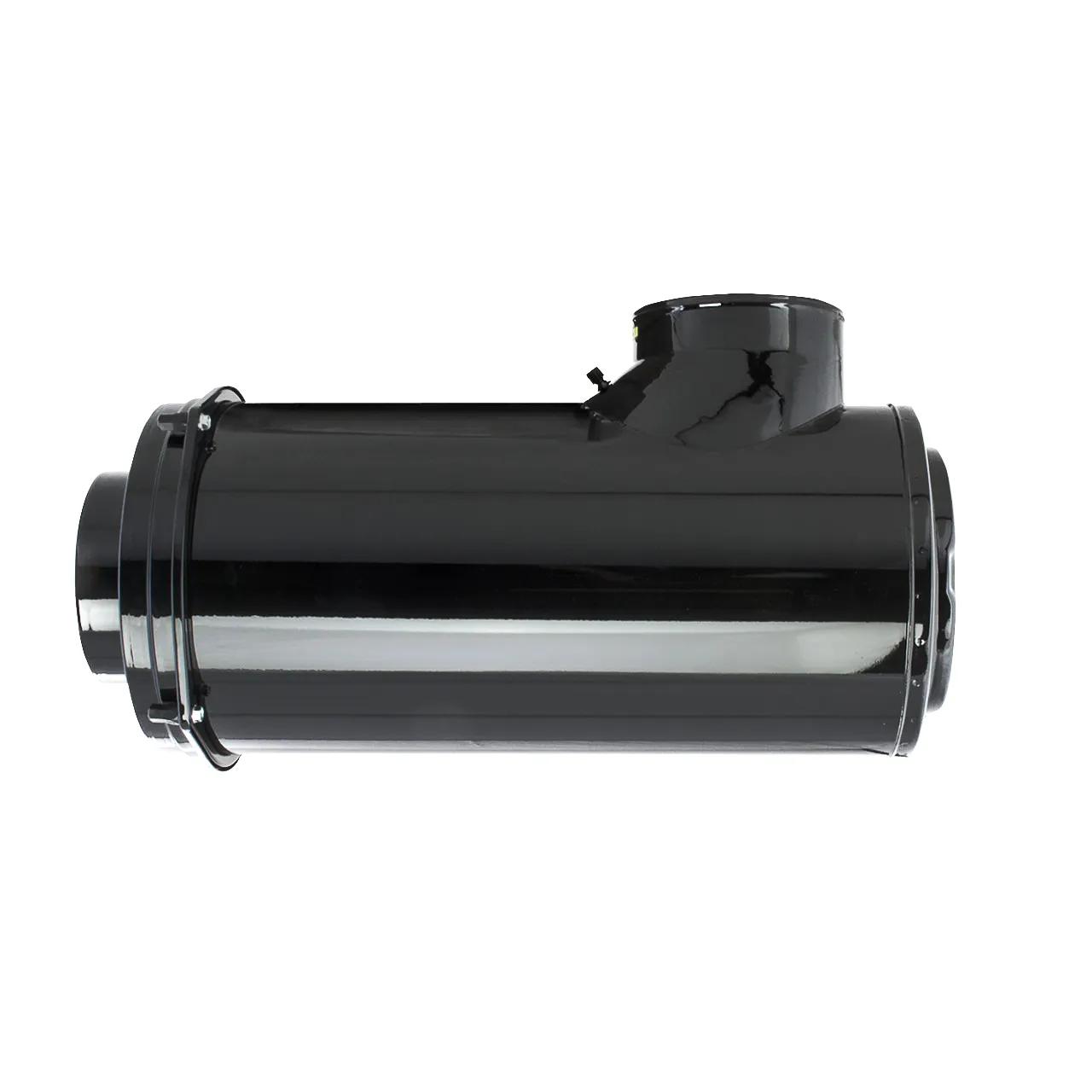

Air Filtration System L: 28,58 in
#DONA132001
Features & Benefits
- ECG Konepac air cleaner family provides high airflow in compact size, for horizontal installation
- Cone shaped filter allows maximum media in a small package
- Durable housing withstands rugged conditions
Specifications
| Diameter | 13 in (330.2 mm) |
| Diameter Range | 13 to 13.99 in |
| Family | EBA |
| Inlet Diameter | 7.99 in |
| Length | 28.58 in |
| Outlet Diameter | 8 in |
| Rated Flow High Range | 1850 cfm (54.4 m³/min) |
| Rated Flow Low Range | 1399 cfm (39.6 m³/min) |
| Rated Flow Mid Range | 1638.6 cfm (46.4 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 28 to 28.99 in |
| Style | Cone |
Interchanges & Equivalent parts:
| A132001 |
| EBA132001 |
| 9576A132001 |
| DNA132001 |
| DNEBA132001 |
| 1334HH2001 |
| DN A132001 |
| DN A132001 |
| 2191-A132001 |
| 88885 |
| AF709 |
| DONA132001 |
| PA2632 |
