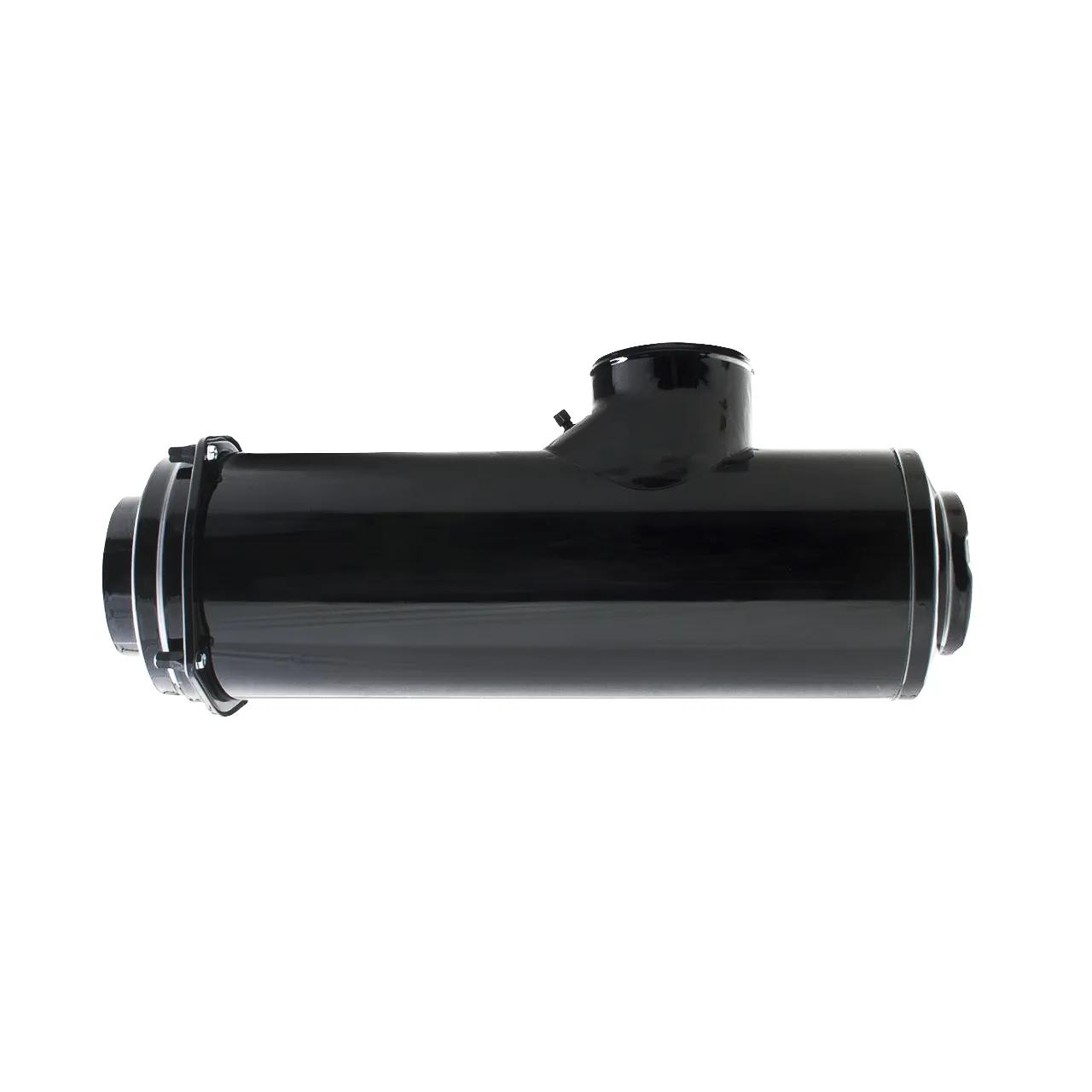

Air Filtration System L: 28,62 in, OD: 6 in
#DONA092037
Features & Benefits
- ECG Konepac air cleaner family provides high airflow in compact size, for horizontal installation
- Cone shaped filter allows maximum media in a small package
- Durable housing withstands rugged conditions
Specifications
| Diameter | 9 in (228.6 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | EBA |
| Inlet Diameter | 5.98 in |
| Length | 28.62 in |
| Media Brand | Microglass |
| Outlet Diameter | 6 in (152.4 mm) |
| Overall Length | 30.19 in |
| Rated Flow High Range | 1131 cfm (32.03 m³/min) |
| Rated Flow Low Range | 876 cfm (24.8 m³/min) |
| Rated Flow Mid Range | 999.41 cfm (28.3 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 28 to 28.99 in |
| Style | Cone |
| Filtration Efficiency | β22[c] = 1000 |
Interchanges & Equivalent parts:
| A092037 |
| 15511 |
| 102A0204 |
| A092001 |
| DNA092001 |
| DNA092037 |
| 86981550 |
| 4161 |
| 41610 |
| EBA092037 |
| 1HB534 |
| 69077BX |
| 69077BXSUB |
| 90010154 |
| 18174092 |
| 220010082 |
| 810003 |
| 00810003 |
| 2191-A092037 |
| 42611 |
| 87611 |
| AF583 |
| DONA092037 |
| PA2500 |
| DDE A092037 |
| DN A092037 |
| DN A092037 |
