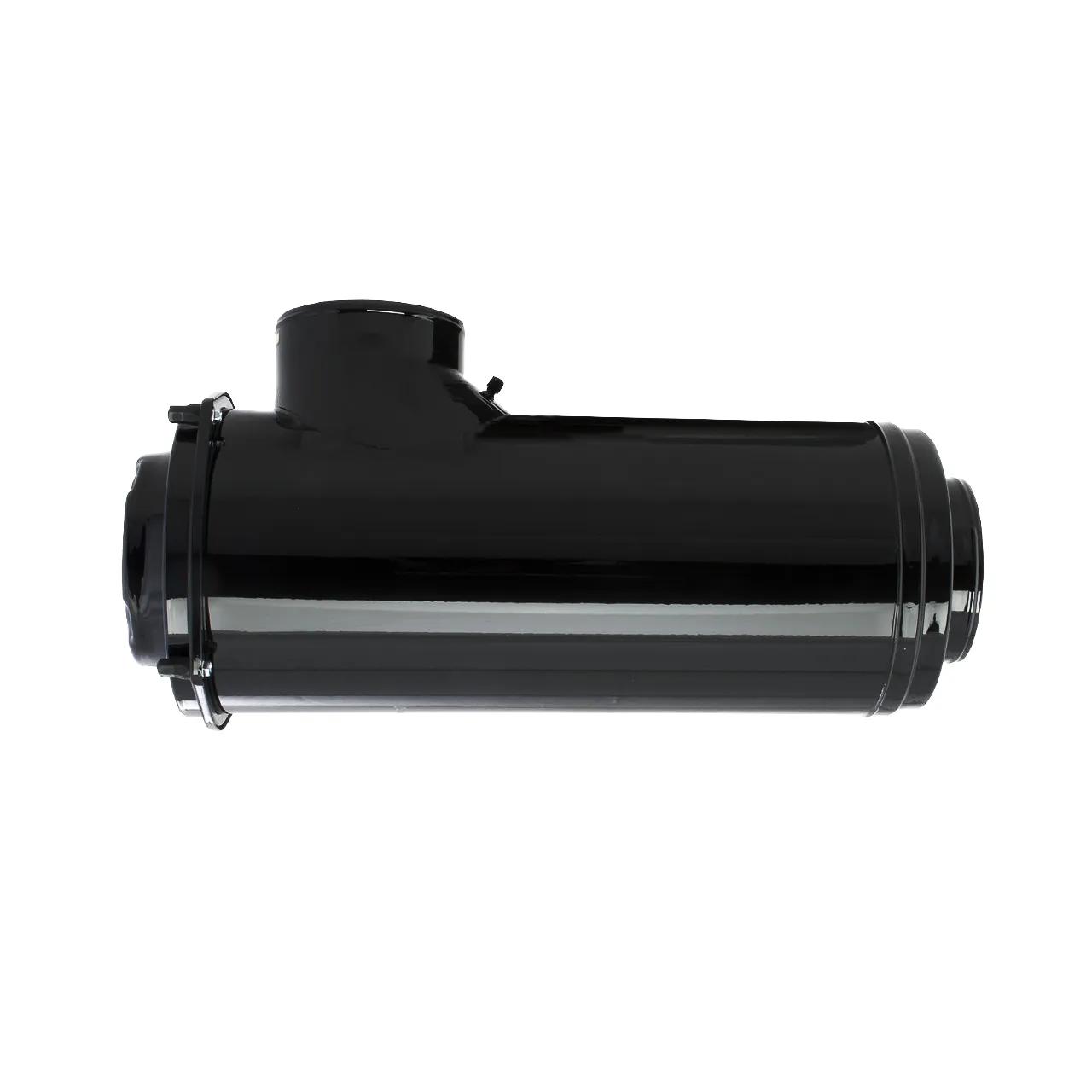

Air Filtration System L: 28,62 in, OD: 7 in
#DONA112018
- ECG Konepac air cleaner family provides high airflow in compact size, for horizontal installation
- Cone shaped filter allows maximum media in a small package
- Durable housing withstands rugged conditions
| Diameter |
11 in (279.4 mm) |
| Diameter Range |
11 to 11.99 in |
| Family |
EBA |
| Inlet Diameter |
7.01 in (178.06 mm) |
| Length |
28.62 in (727 mm) |
| Outlet Diameter |
7 in (177.8 mm) |
| Overall Length |
30.2 in (767.1 mm) |
| Rated Flow High Range |
1473 cfm (41.72 m³/min) |
| Rated Flow Low Range |
1152 cfm (33 m³/min) |
| Rated Flow Mid Range |
1300 cfm (36.82 m³/min) |
| Restriction HR |
10 in H2O (254 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Restriction MR |
8 in H2O (203 mm H2O) |
| Length Range |
28 to 28.99 in |
| Style |
Cone |
| A112018 |
| EBA112018 |
| C4A0170 |
| DNA112018 |
| 5309505000 |
| 5309505001 |
| DNEBA112018 |
| JE0203001 |
| 19502841 |
| 17174111 |
| 18174111 |
| 810006 |
| DN A112018 |
| DN A112018 |
| 00810006 |
| 2191-A112018 |
| 87610 |
| AF2312 |
| AH19100 |
| DONA112018 |
| PA3951 |
| TWDA112018 |
