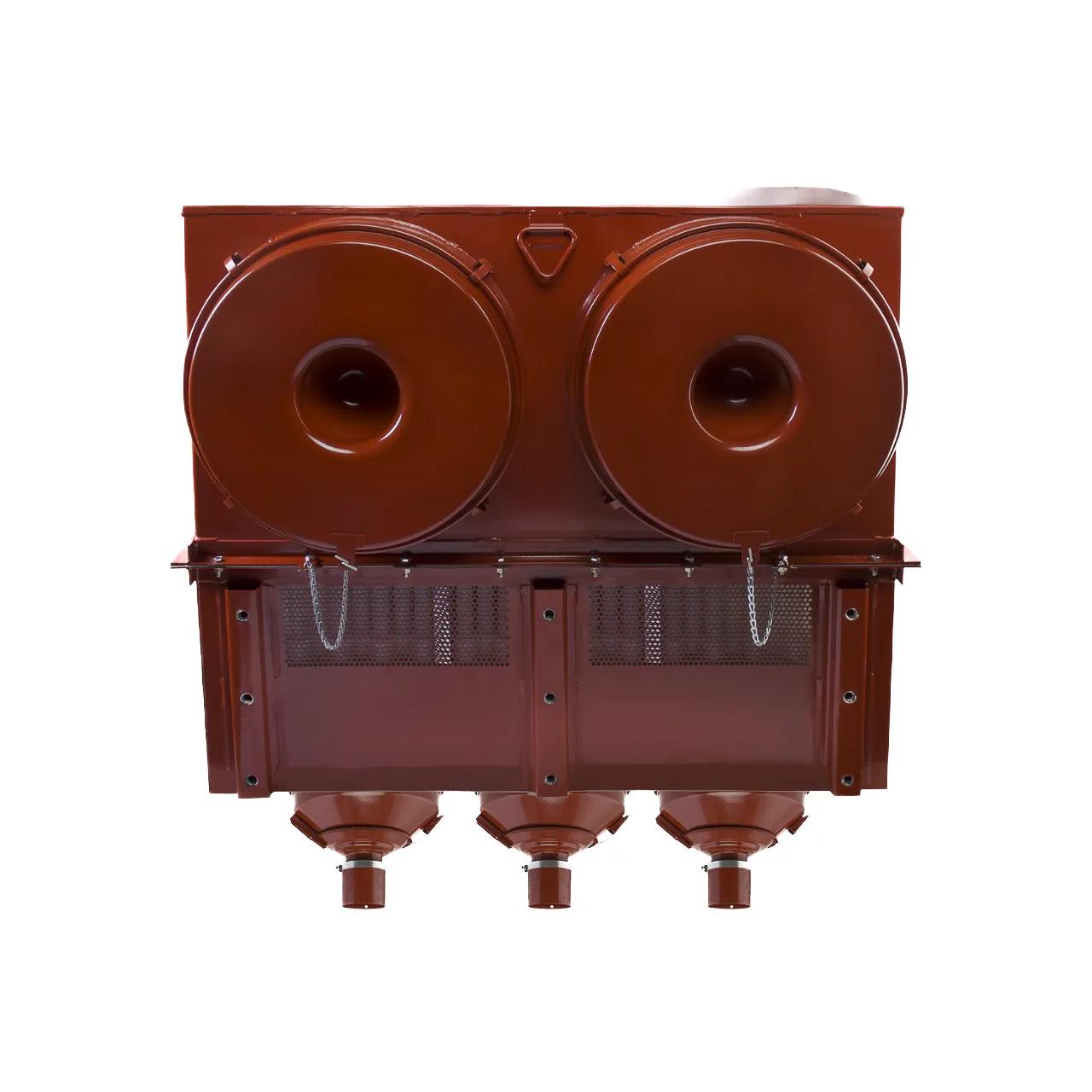

Air Filtration System L: 31,42 in, OD: 10 in
#DONG290055
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
| Depth |
23.5 in (596.9 mm) |
| Diameter |
19.68 in (499.9 mm) |
| Diameter Range |
10 to 10.99 in |
| Family |
SSG |
| Length |
31.42 in (798.1 mm) |
| Outlet Diameter |
10 in (254 mm) |
| Rated Flow High Range |
4795 cfm (135.8 m³/min) |
| Rated Flow Low Range |
4199 cfm (118.9 m³/min) |
| Restriction HR |
8 in H2O (203 mm H2O) |
| Restriction LR |
5.99 in H2O (152 mm H2O) |
| Length Range |
31 to 31.99 in |
| Style |
Vertical |
| Width |
43 in (1092.2 mm) |
| G290055 |
| 13011L |
| 57205 |
| 2191-G290055 |
| DONG290055 |
| DN G290055 |
See more
