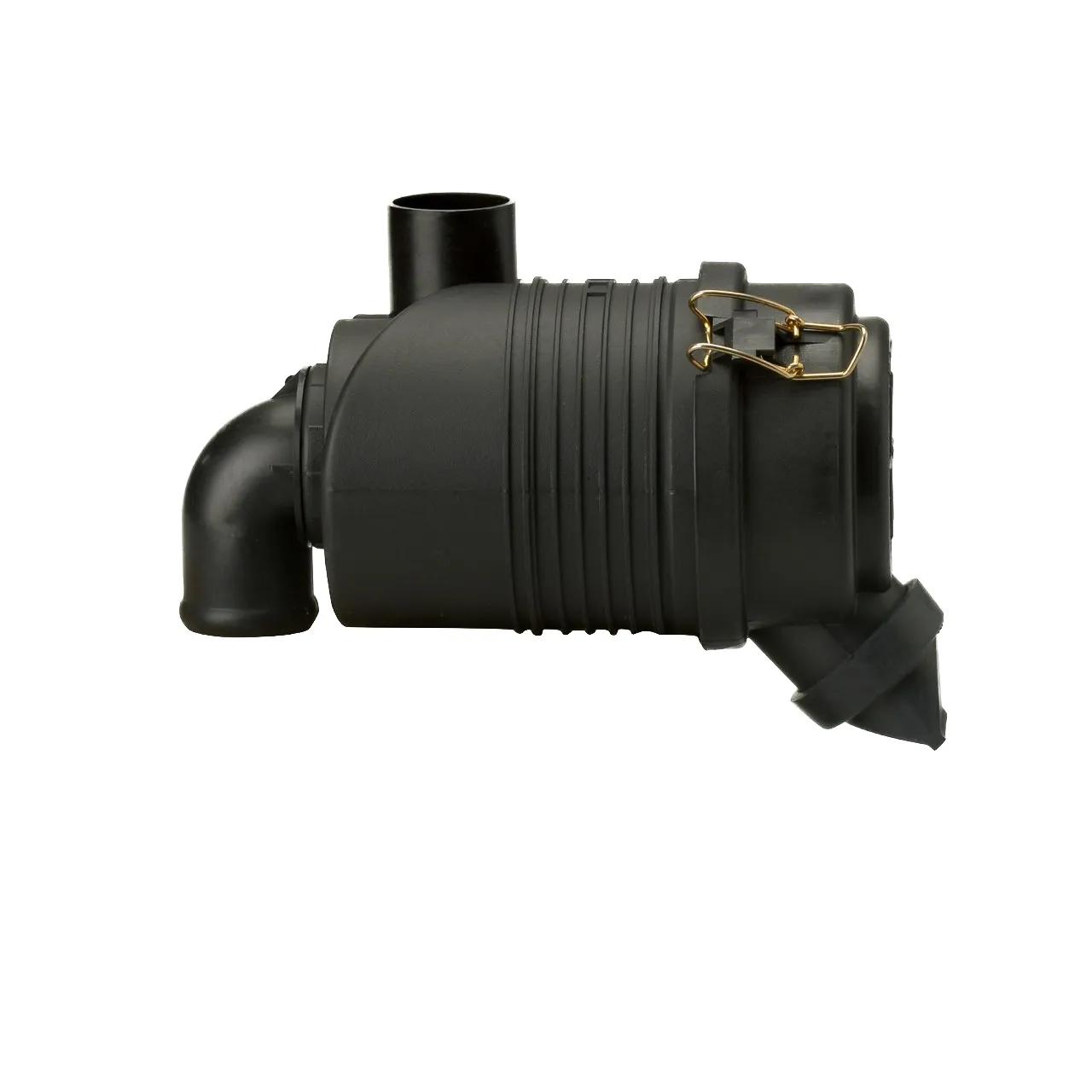

Air Filtration System L: 7,44 in
Product Overview
Specifications
| Diameter | 4.8 in (121.92 mm) |
| Diameter Range | 4 to 5 in |
| Family | FPG |
| Inlet Diameter | 1.73 in (43.95 mm) |
| Length | 7.44 in (189 mm) |
| Outlet Diameter | 1.73 in (44 mm) |
| Rated Flow High Range | 706 cfm (20 m³/min) |
| Rated Flow Low Range | 57 cfm (1.6 m³/min) |
| Rated Flow Mid Range | 63.57 cfm (1.8 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Standard Length | 7 to 8 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
DONG042545, AF2308, AF2399, AH19082, DN G042545, DN G042545, 1340057, 1001121, 103526701, 11010X80701, 17245111550, 196346, 20400034, 2500831, 29230612, 296281046, 3333737, 36890127, 650262, 7160317, 7304000634, 809004, 825118, 825118X, 835008, 893182, 893183, 932190, A650262, HSG3077, M198011, MA245AC, N100595, P809004, 2C25104, AH19082, DONG042545, DN G042545, AF2399, AF2308, DN G042545, 893183, 835008, 825118X, 7304000634, 893182, 36890127, 7160317, MA245AC, 650262, 932190, 825118, N100595, HSG3077, 809004, M198011, A650262, 3333737, P809004, 2C25104, 1340057, 29230612, 2500831, 196346, 1001121, 11010X80701, 20400034, 103526701, 296281046, 17245111550, 301438, 33281, 1001247560, EH65A0141, 6090, G052545, 3FLT147, 192188, 505155, 128601, 128601AA
