Air Filtration System L: 7,44 in
#DONG042545
Product Overview

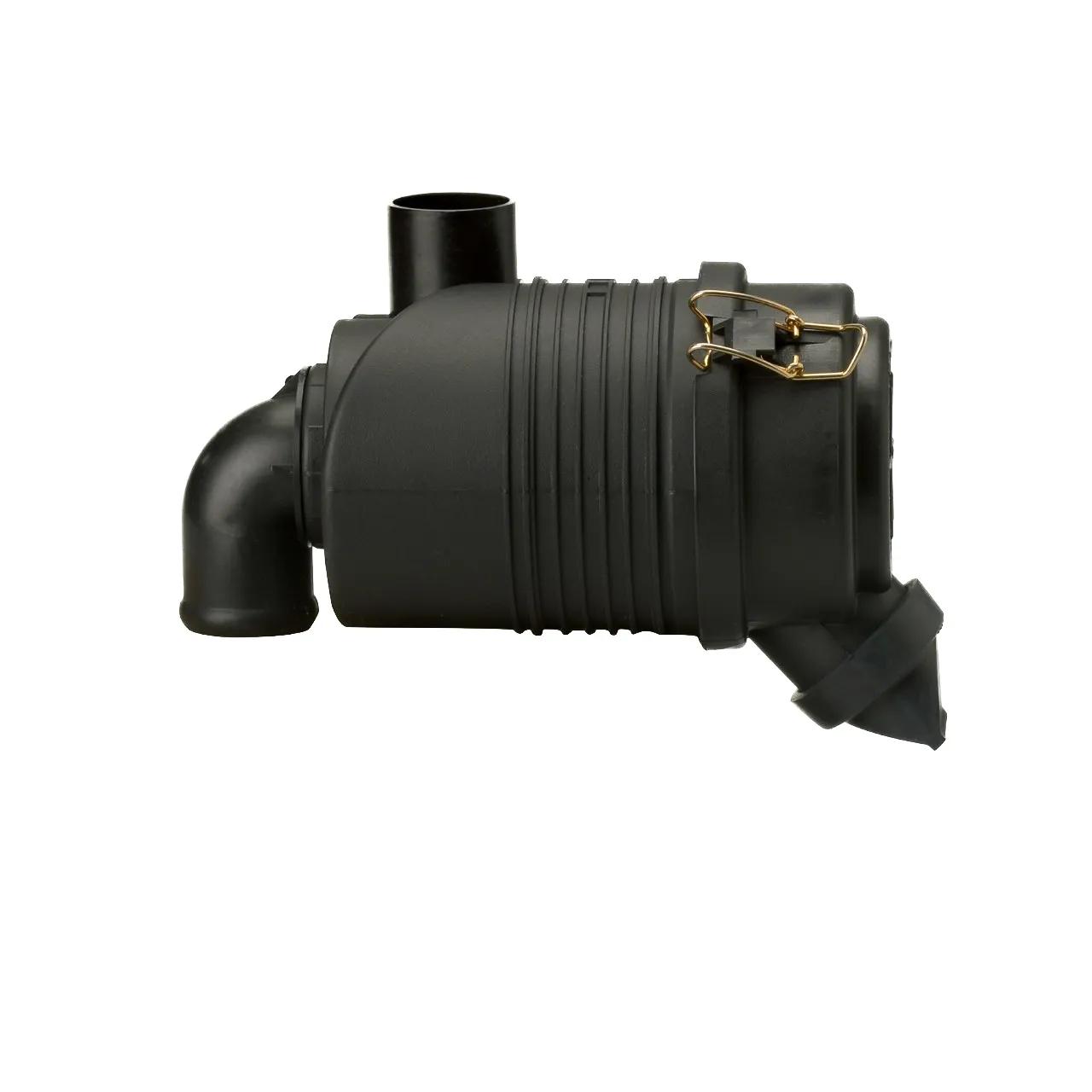

AIR CLEANER, FPG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 4.8 in (121.92 mm) |
| Diameter Range | 4 to 4.99 in |
| Family | FPG |
| Inlet Diameter | 1.73 in (43.95 mm) |
| Length | 7.44 in (189 mm) |
| Outlet Diameter | 1.73 in (44 mm) |
| Rated Flow High Range | 706 cfm (20 m³/min) |
| Rated Flow Low Range | 57 cfm (1.6 m³/min) |
| Rated Flow Mid Range | 63.57 cfm (1.8 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 7 to 7.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 103526701 |
| 893182 |
| 20400034 |
| 2500831 |
| 196346 |
| 33281 |
| 36890127 |
| 932190 |
| 7304000634 |
| 1001121 |
| 1001247560 |
| 1340057 |
| 11010X80701 |
| 7160317 |
| 192188 |
| 29230612 |
| A650262 |
| 3333737 |
| 505155 |
| EH65A0141 |
| 128601 |
| 128601AA |
| 2C25104 |
| 296281046 |
| 6090 |
| G052545 |
| 17245111550 |
| 3FLT147 |
| HSG3077 |
| AH19082 |
| 650262 |
| MA245AC |
| 301438 |
| 809004 |
| 825118 |
| 825118X |
| 835008 |
| P809004 |
| N100595 |
| 893183 |
| DN G042545 |
| DN G042545 |
| AF2308 |
| AF2399 |
| DONG042545 |
| M198011 |
