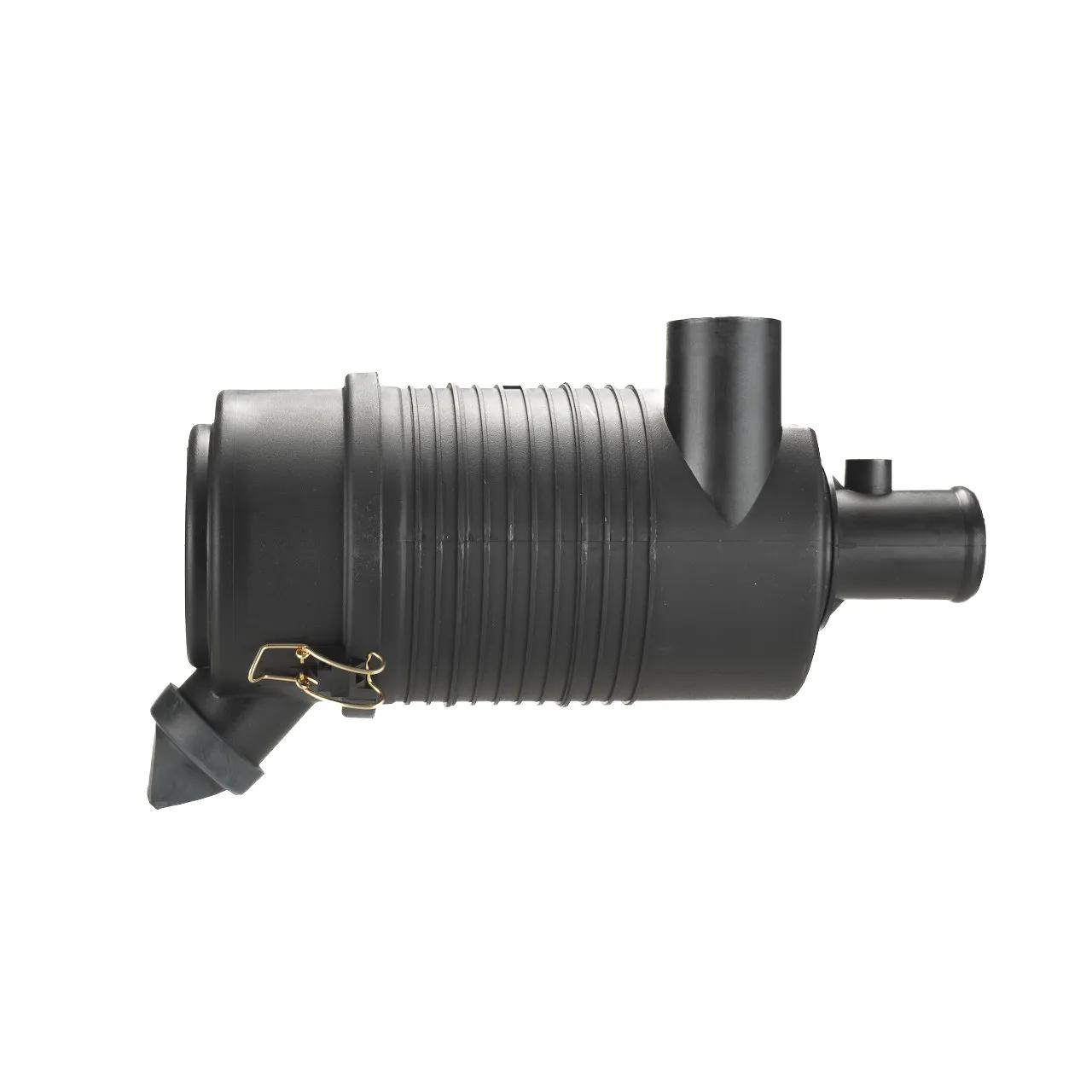

Air Filtration System L: 8,12 in, OD: 2 in, ID: 2 in
#DONG057511
Product Overview
AIR CLEANER, FPG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.75 in (146.1 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FPG |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 8.12 in (206.3 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Overall Length | 14.19 in (360.5 mm) |
| Rated Flow High Range | 91 cfm (2.6 m³/min) |
| Rated Flow Low Range | 64 cfm (1.8 m³/min) |
| Rated Flow Mid Range | 81.23 cfm (2.3 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 8 to 8.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| 56412316 |
| MA385AC |
| 1402469 |
| 2483134 |
| 72404083 |
| 2500985 |
| 194035 |
| 330873669A |
| 33500585 |
| 505138 |
| 260902001 |
| 046362 |
| 2191-G057511 |
| DN G057511 |
| DN G057511 |
| 364200-021 |
| AF2279 |
| AF2342 |

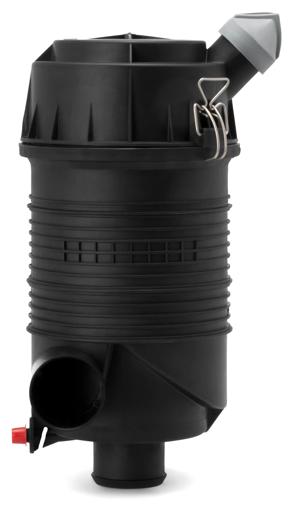

| AH19084 |
| AH19084FLG |
| DONG057511 |
| 46362 |
