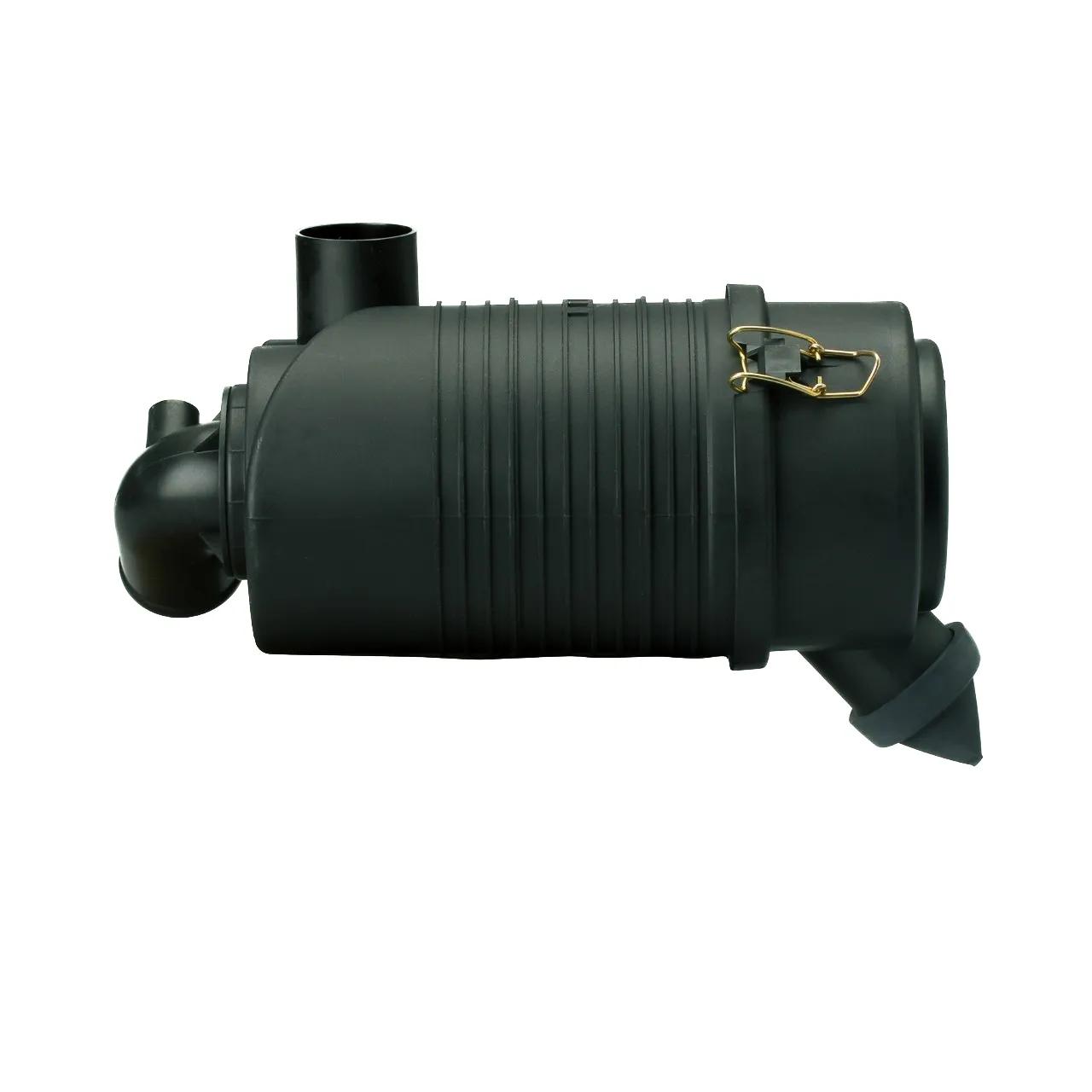

Air Filtration System L: 8,45 in, OD: 2 in, ID: 2 in
Product Overview
Specifications
| Diameter | 5.75 in (146.1 mm) |
| Diameter Range | 5 to 6 in |
| Family | FPG |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 8.45 in (214.7 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Overall Length | 12.98 in (329.7 mm) |
| Rated Flow High Range | 91 cfm (2.6 m³/min) |
| Rated Flow Low Range | 64 cfm (1.8 m³/min) |
| Rated Flow Mid Range | 81.23 cfm (2.3 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Standard Length | 8 to 9 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
364200-021, AF2279, AF2342, AH19086FLG, CA9550, DN G057512, DN G057512, DONG057512, E-4961, 0304034, 03782600, 053588, 10000633, 110107028, 11010X79701, 176718, 180427, 194093, 194093A, 209493, 264391001, 285372001, 300042600, 33500215, 4215896M91, 467472, 482478, 56482478, 7304000640, 809218, 809218B, AH19086, MA374AC, OE3655, TCA12208, 23378, DN G057512, DN G057512, CA9550, E-4961, AF2342, AH19086FLG, DONG057512, 364200-021, AF2279, 467472, 285372001, 264391001, 11010X79701, 110107028, TCA12208, 194093, 0304034, 56482478, 03782600, 10000633, 053588, 809218, 176718, AH19086, 180427, MA374AC, 4215896M91, 809218B, 482478, 7304000640, OE3655, 209493, 33500215, 194093A, 300042600, 23378, 3782600, 304034, 42036074, 181320, 515000036, 181320, 4101403, EH650J0785, 711270, 53588
