Air Filtration System L: 8,45 in, OD: 2 in, ID: 2 in
#DONG057512
Product Overview

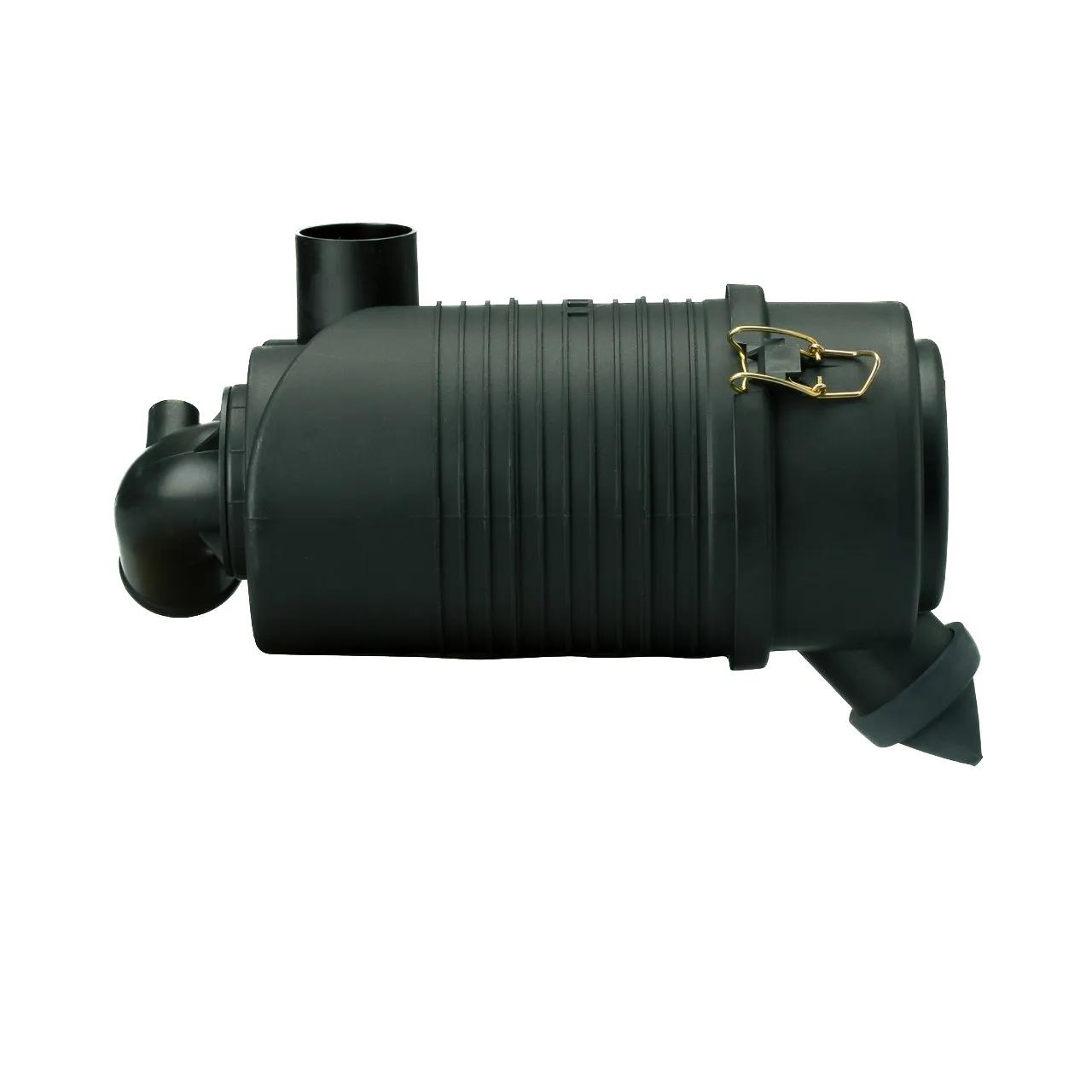

AIR CLEANER, FPG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 5.75 in (146.1 mm) |
| Diameter Range | 5 to 5.99 in |
| Family | FPG |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Inner Diameter | 2 in (50.8 mm) |
| Length | 8.45 in (214.7 mm) |
| Outlet Diameter | 2 in (50.8 mm) |
| Overall Length | 12.98 in (329.7 mm) |
| Rated Flow High Range | 91 cfm (2.6 m³/min) |
| Rated Flow Low Range | 64 cfm (1.8 m³/min) |
| Rated Flow Mid Range | 81.23 cfm (2.3 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 8 to 8.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| AH19086 |
| 482478 |
| 56482478 |
| MA374AC |
| 23378 |
| 809218 |
| 809218B |
| 467472 |
| 300042600 |
| 10000633 |
| 181320 |
| 515000036 |
| 194093 |
| 194093A |
| 176718 |
| OE3655 |
| 7304000640 |
| 4101403 |
| TCA12208 |
| 110107028 |
| 11010X79701 |
| 33500215 |
| EH650J0785 |
| 180427 |
| 711270 |
| 209493 |
| 264391001 |
| 285372001 |
| 03782600 |
| 0304034 |
| 053588 |
| 364200-021 |
| 4215896M91 |
| AF2279 |
| AF2342 |
| AH19086FLG |
| CA9550 |
| DONG057512 |
| E-4961 |
| 42036074 |
| DN G057512 |
| DN G057512 |
| 3782600 |
| 304034 |
| 53588 |
