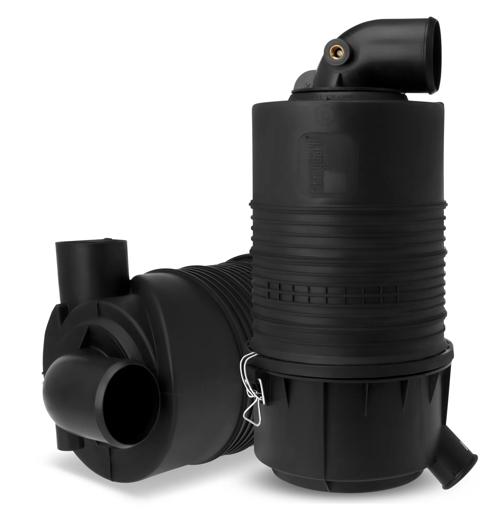

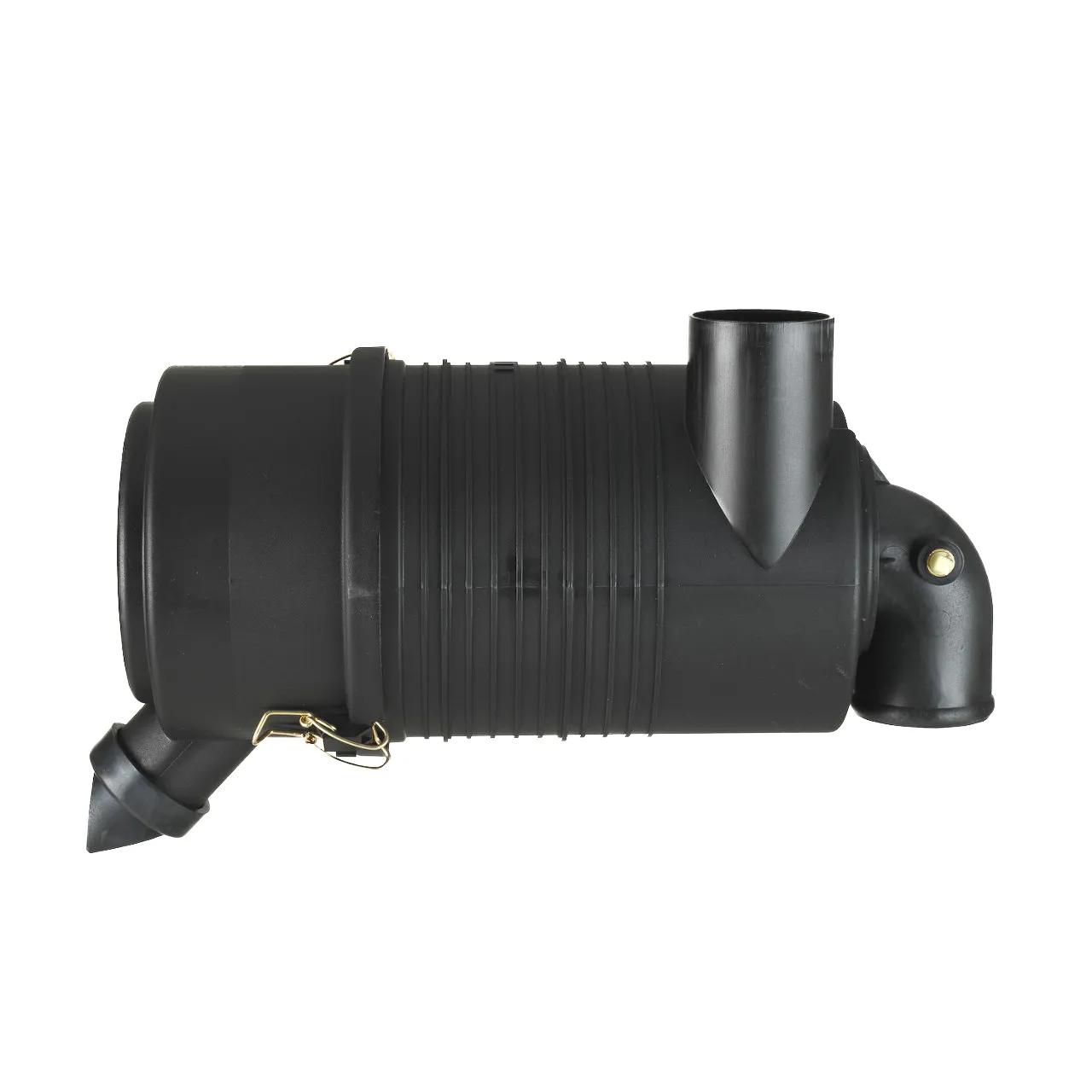

Air Filtration System L: 8,58 in, OD: 2,5 in, ID: 2,5 in
#DONG065433
Product Overview
AIR CLEANER, FPG RADIALSEAL
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | 90 DEGREE OUTLET. NO SAFETY |
| Diameter | 6.75 in (171.5 mm) |
| Diameter Range | 6 to 6.99 in |
| Family | FPG |
| Inlet Diameter | 2.52 in (64.01 mm) |
| Inner Diameter | 2.5 in (63.5 mm) |
| Length | 8.58 in (218 mm) |
| Outlet Diameter | 2.5 in (63.5 mm) |
| Overall Length | 15.06 in (382.6 mm) |
| Rated Flow High Range | 156 cfm (4.42 m³/min) |
| Rated Flow Low Range | 121 cfm (4 m³/min) |
| Rated Flow Mid Range | 135 cfm (3.83 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 8 to 8.99 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| AH19089 |
| MA372AC |
| MA372ZC |
| 6673892 |
| 15090452 |
| N102858 |
| 811887500 |
| 523291901 |
| 811887500J |
| 81887500 |
| 1403051 |
| LL847444 |
| TJ811887500 |
| P50181740038 |
| A033919 |
| 8118875 |
| 1108917 |
| 935111 |
| 935111SUB |
| DN G065433 |
| DN G065433 |
| 01403051 |
| 2191-G065433 |
| AF2307 |
| AF2310 |
| AH19089FLG |
| DONG065433 |
| M22157 |
