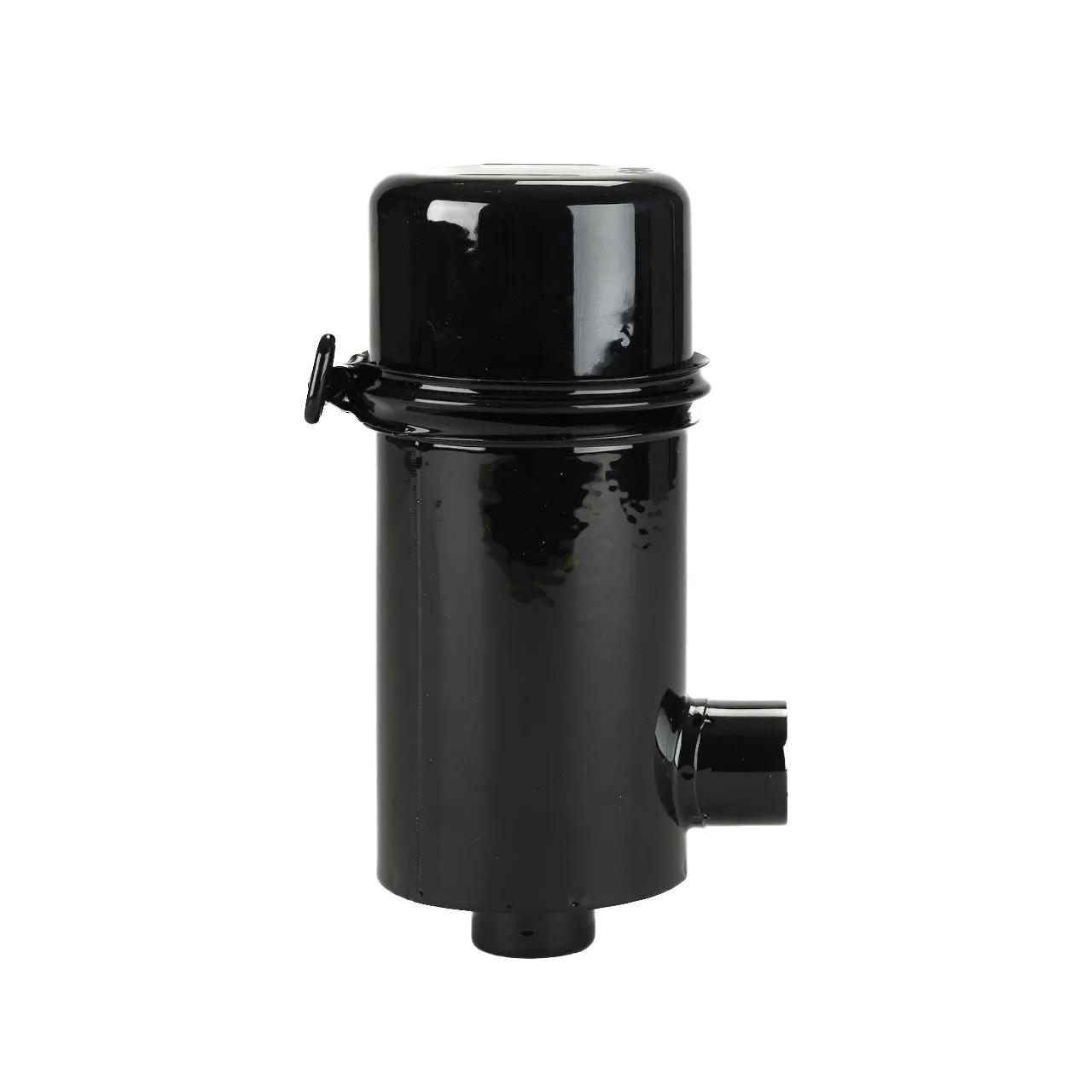

Air Filtration System L: 9,69 in
#DONG042503
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 4.37 in (111 mm) |
| Diameter Range | 4 to 4.99 in |
| Family | FWG |
| Inlet Diameter | 1.73 in (43.95 mm) |
| Length | 9.69 in (246.2 mm) |
| Outlet Diameter | 1.73 in (44 mm) |
| Rated Flow High Range | 777 cfm (22 m³/min) |
| Rated Flow Low Range | 57 cfm (1,6 m³/min) |
| Rated Flow Mid Range | 67,1 cfm (1,9 m³/min) |
| Restriction HR | 10 In H2O |
| Restriction LR | 5.98 IN H2O |
| Restriction MR | 7.99 IN H2O |
| Length Range | 9 to 10 in |
Interchanges & Equivalent parts:
| FWG042503 |
| 478460 |
| CLE00388 |
| 42031427 |
| 3778453 |
| 66U152622 |
| V36475 |
| 1670331B |
| 6555551 |
| 1700A61940 |
| 148067 |
| 891354 |
| 113162 |
| 35872 |
| 26067G01 |
| 9576G042503 |
| 61697 |
| 70778B |
| 77078B |
| 7304000107 |
| HD2800 |
| 4100019 |
| 1352669 |
| SKS530017 |
| X14210016 |
| 122089 |
| 1340032 |
| 1340051 |
| 19164 |
| 19164S1 |
| 20017 |
| 59099 |
| 580002777 |
| 1402276 |
| N423192001 |
| 44G042503 |
| 117117 |
| 117119AA |
| 374002 |
| 1083A67G15 |
| 120251 |
| 38337 |
| 5038337 |
| 854910 |
| 915160 |
| 810078 |
| 35A11878 |
| DN G042503 |
| DN G042503 |
| 061697 |
| 020017 |
| 01401248 |
| 01402276 |
| 01402894 |
| 038337 |
| 00810078 |
| 2191-G042503 |
| ACDKG |
| AF167K |
| AH19107 |
| AH19107FLG |
| DONG042503 |
| M15026 |
| PA1865-FN |
| PA1865FNJAB |
| 1401248 |
| 1402894 |
