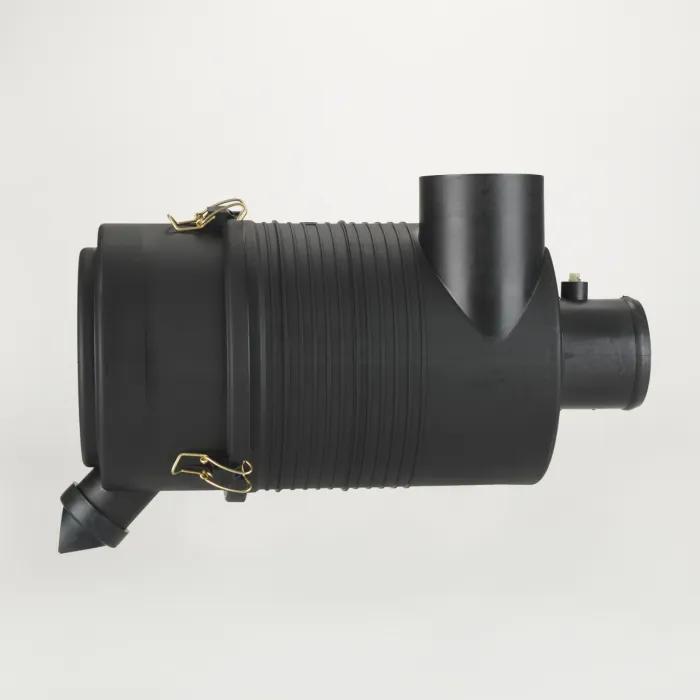

Air Filtration System L: 9,7 in, OD: 3,5 in, ID: 3,74 in
#DONG082527
Product Overview
Air cleaner, fpg radialseal
Features & Benefits
- RadialSeal Sealing Technology ensures reliability, is easy to service and makes the filter self centering, self-aligning and self-sealing
- Durable plastic housing corrosion free and lightweight
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 8.35 in (212.1 mm) |
| Diameter Range | 8 to 8.99 in |
| Family | FPG |
| Inlet Diameter | 3.74 in |
| Inner Diameter | 3.74 in (95 mm) |
| Length | 9.7 in |
| Outlet Diameter | 3.5 in |
| Overall Length | 18.17 in |
| Rated Flow High Range | 276 cfm (7.82 m³/min) |
| Rated Flow Low Range | 205 cfm (6 m³/min) |
| Rated Flow Mid Range | 244 cfm (6.91 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5.99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 9 to 10 in |
| Style | Radialseal |
Interchanges & Equivalent parts:
| C03097 |
| 121502700 |
| N100767 |
| Y0602046582 |
| L69302 |
| 7304000647 |
| S1902054 |
| 460C103 |
| 1902054 |
| 1006339 |
| 1046Z1021 |
| 18174088 |
| 501817437 |
| G08252718174088 |
| P50181740037 |
| 980800 |
| 220166001 |
| 2201660011 |
| DN G082527 |
| DN G082527 |
| AF2270 |
| AF2286 |
| AH19095 |
| AH19095FLG |
| DONG082527 |
| G082527 |
