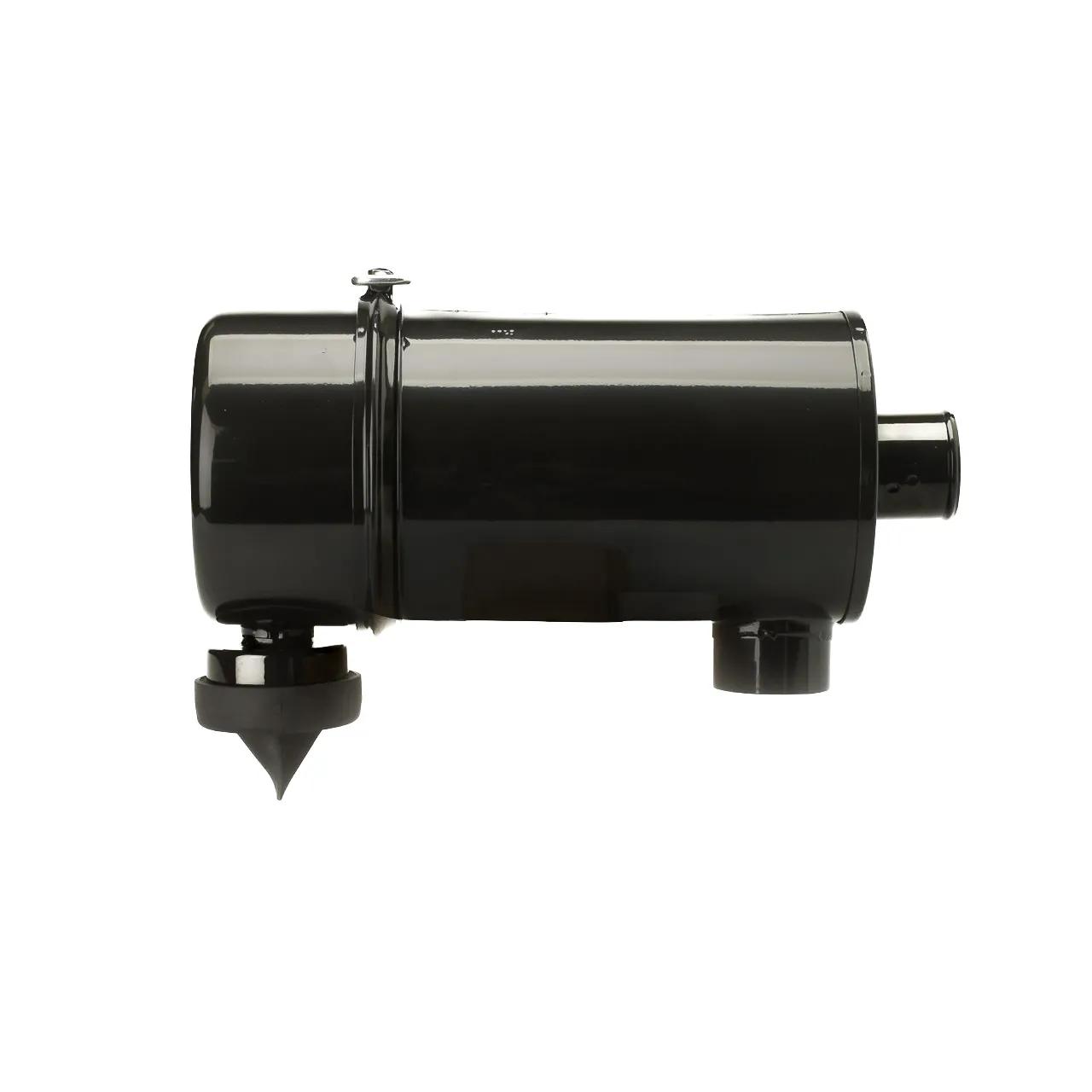

Air Filtration System L: 9,9 in, OD: 2,25 in, ID: 2,5 in
#DONG065012
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter | 6.5 in (165.1 mm) |
| Diameter Range | 6 to 6.99 in |
| Family | FWG |
| Inlet Diameter | 2.52 in (64.01 mm) |
| Inner Diameter | 2,5 in (63,5 mm) |
| Length | 9.9 in (251.5 mm) |
| Outlet Diameter | 2.25 in (57.15 mm) |
| Overall Length | 15.8 in (401.4 mm) |
| Rated Flow High Range | 145 cfm (4,11 m³/min) |
| Rated Flow Low Range | 114 cfm (4 m³/min) |
| Rated Flow Mid Range | 131 cfm (3,71 m³/min) |
| Restriction HR | 10 in H2O (254 mm H2O) |
| Restriction LR | 5,99 in H2O (152 mm H2O) |
| Restriction MR | 8 in H2O (203 mm H2O) |
| Length Range | 9 to 10 in |
Interchanges & Equivalent parts:
| 7987 |
| 6650802 |
| TA64000139 |
| 73148998 |
| L101606 |
| 980271 |
| 22273 |
| 160576 |
| 64804773 |
| 351146 |
| 9576G065012 |
| M2073 |
| 60190151 |
| 61090151 |
| 64090151 |
| 34661000 |
| ASKS448454 |
| 281916 |
| 10443935 |
| 57324030 |
| 10712163 |
| 2120087 |
| P12163 |
| 29123066 |
| 1400820 |
| H1901 |
| 2147001 |
| 21470011 |
| DN G065012 |
| DN G065012 |
| 00004672 |
| 00651 |
| 4802006 |
| 01400820 |
| 0980271 |
| 049338 |
| 00810085 |
| 0379225 |
| 007987 |
| 104109 |
| 2191-G065012 |
| AF129K |
| AH19109 |
| DONG065012 |
| PA1667FN |
| 4001485 |
| 4672 |
| 49338 |
