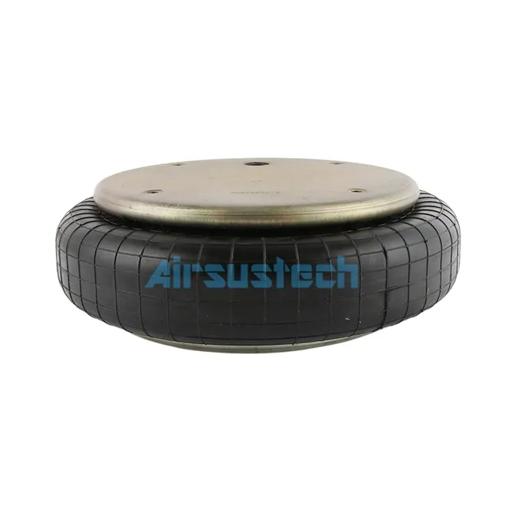

Air Spring - 113B1 8X1/2ST 1/4NPT W/BMP STD
#FIRW01-358-7112
Specifications
| Air Spring Type | Single Convoluted |
| Application | Holland (Neway) 90557028, Ridewell 1003587112C |
| Bellows | 113-1 |
| Bottom Mount | Stud |
| Bottom Plate Diameter | 11-5/16 in (28.73 cm) |
| Bottom Plate Hole/Stud Qty | 4 |
| Compressed Length | 2-1/8 in (5.41 cm) |
| Diameter | 14-1/8 in (35.89 cm) |
| Loading Capacity at 20 psig | 2240 lb-ft |
| Loading Capacity at 60 psig | 6720 lb-ft |
| Loading Capacity at 90 psig | 10080 lb-ft |
| Temperature | 57°C @ -54°C (134.6°F @ -65.2°F) |
| Top Mount | Stud |
| Top Plate Diameter | 11-5/16 in (28.73 cm) |
| Top Plate Hole/Stud Qty | 5 |
| Weight | 15.2 lb (6.89 kg) |
Interchanges & Equivalent parts:
| 1B14358 |
| 354-7112 |
| 90557028 |
| AB7112 |
| 1003587112C |
| 4339 |
| 90557026 |
| AS7112 |
| FI W01 358 7112 |
| FS 530-14 339 |
| FSIW013587112 |
| G2297112500 |
| TWDW013587112 |
| W013587112 |
| W01-358-7112 |
