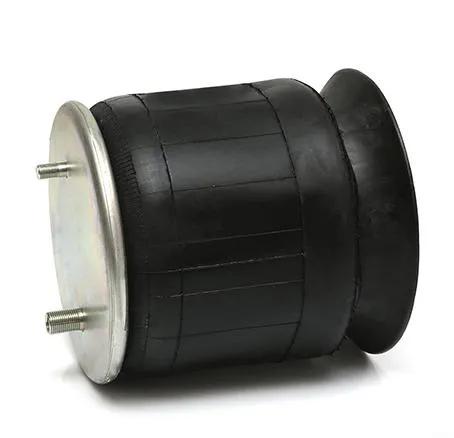

Air Spring - 1T15LP3 RB CFST PBW
#FIRW01-358-9073
Specifications
| Air Spring Type | 1T Reversible Sleeve |
| Application | Ridewell 1003589073C, Replacement piston comes without stud |
| Bellows | 1T15LP-3 |
| Bottom Mount | Stud |
| Bottom Plate Diameter | 9-29/64 in |
| Bottom Plate Hole/Stud Qty | 2 |
| Compressed Length | 6-13/32 in |
| Diameter | 9-1/8 in |
| Extended Length | 16-29/32 in |
| Loading Capacity at 20 psig | 1090 lbs-ft |
| Loading Capacity at 60 psig | 3270 lbs-ft |
| Loading Capacity at 90 psig | 4905 lbs-ft |
| Material | Natural Rubber |
| Piston Height | 4-9/16 in |
| Temperature | 57 °C to -54 °C |
| Top Mount | Stud |
| Top Plate Diameter | 9 in |
| Top Plate Hole/Stud Qty | 2 |
| Weight | 13.6 lbs |
Interchanges & Equivalent parts:
| 1R11-051 |
| 352-9073 |
| ARB1R11-051 |
| 0990671 |
| 3040-W013589073 |
| 63-0067 |
| 630045 |
| 6336212 |
| B7193 |
| FI W01 358 9073 |
| FSIW013589073 |
| K-102-A |
| TWDW013589073 |
| W013589073 |
| S-7193 |
| 1R11018 |
| 57009073 |
| 75179 |
| K102A |
| W01-358-9073 |
| 1R12028 |
| 9 9M-13 P 1181 |
| S-13040 |
| S7193 |
