Air Spring - 22D1.5 RB 3/4CF ST 2BN
#FIRW01-358-7446

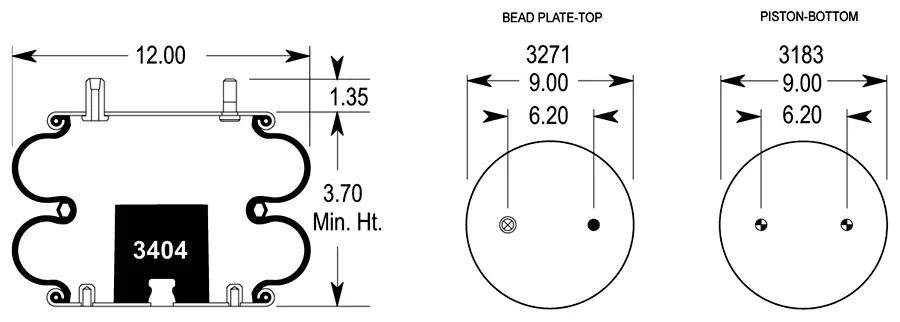

Specifications
| Air Spring Type | Double Convoluted |
| Application | Hendrickson Trailer S3798, R & S Truck & Body 1082914, Watson & Chalin AS-0005 |
| Bellows | 22-1.5 |
| Bottom Mount | Flat |
| Bottom Plate Diameter | 9 in |
| Bottom Plate Hole/Stud Qty | 2 |
| Compressed Length | 3-45/64 in |
| Diameter | 12 in |
| Loading Capacity at 20 psig | 1166 lb-ft |
| Loading Capacity at 60 psig | 3498 lb-ft |
| Loading Capacity at 90 psig | 5247 lb-ft |
| Temperature | 57 °C to -54 °C |
| Top Mount | Stud |
| Top Plate Diameter | 9 in |
| Top Plate Hole/Stud Qty | 2 |
| Weight | 14.7 lbs |
Interchanges & Equivalent parts:
| 2B12-402 |
| 2B12402 |
| 354-7446 |
| AB7446 |
| AS-4370 |
| 1082914 |
| 4370 |
| AS0005 |
| AS7446 |
| B3798 |
| FD 330-30 370 |
| FI W01 358 7446 |
| FIRW01-358-7446 |
| FSIW013587446 |
| G2297446500 |
| REA2B12-402 |
| S-3798 |
| TR7446 |
| TWDW013587446 |
| W013587446 |
| 7446 |
| W01-358-7446 |
