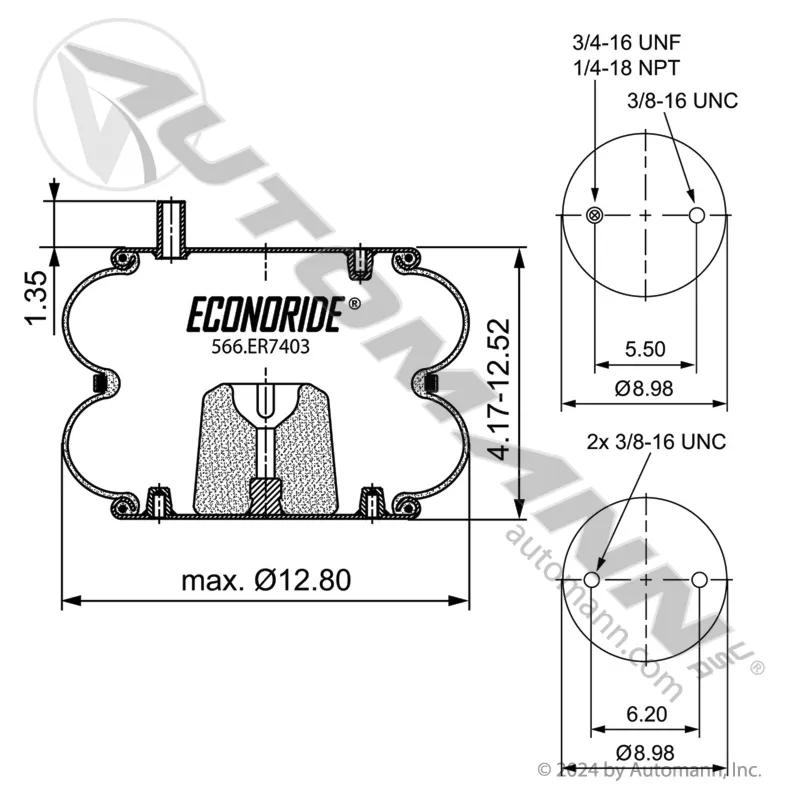

Air Spring, Double Convoluted Air Spring, 4720 at 80 psi, 5900 at 100 psi, 3.1 in Compressed Length, 12.5 in Extended Length, 12.8 in, 9.5 in Height
#MZH566.ER7403
Product Overview
Air Spring, Double Convoluted Air Spring, 4720 at 80 psi, 5900 at 100 psi, 3.1 in Compressed Length, 12.5 in Extended Length, 12.8 in, 9.5 in Height, For Hendrickson Aux Reyco Granning Ridewell Watson and Chalin
Features & Benefits
- Natural freq. (cpm): 102
- Top plate hole/stud qty: 2
- Top plate dia. (A): 9
- Top plate C to C dia. (B): 5.5
- Bottom plate hole/stud qty: 2
- Bottom plate dia. (c): 9
- Bottom plate c to c dia. (d): 6.20 in
- Bumper: yes
Specifications
| Air Spring Type | Double Convoluted |
| Application | Hendrickson Aux Reyco Granning Ridewell Watson and Chalin |
| Compressed Length | 3.1 in |
| Extended Length | 12.5 in |
| Height | 9.5 in |
| Quantity | 1 |
| UPC | 889626620027 |
| Weight | 14.8 lb |
| Capacity | 4720 at 80 psi, 5900 at 100 psi |
| Fitting Size | 12.8 in |
| Manufacturer Part Number | 566.ER7403 |
| Product Category | Air Spring |
