Air Spring Mounting Kit, For INTRAAX SP, ULTRAA-K, VANTRAAX HKANT 40K and 46K, HKAT 50K, HKANT 69K23/HKAT 69K25
#TURS-22619/2
Product Overview

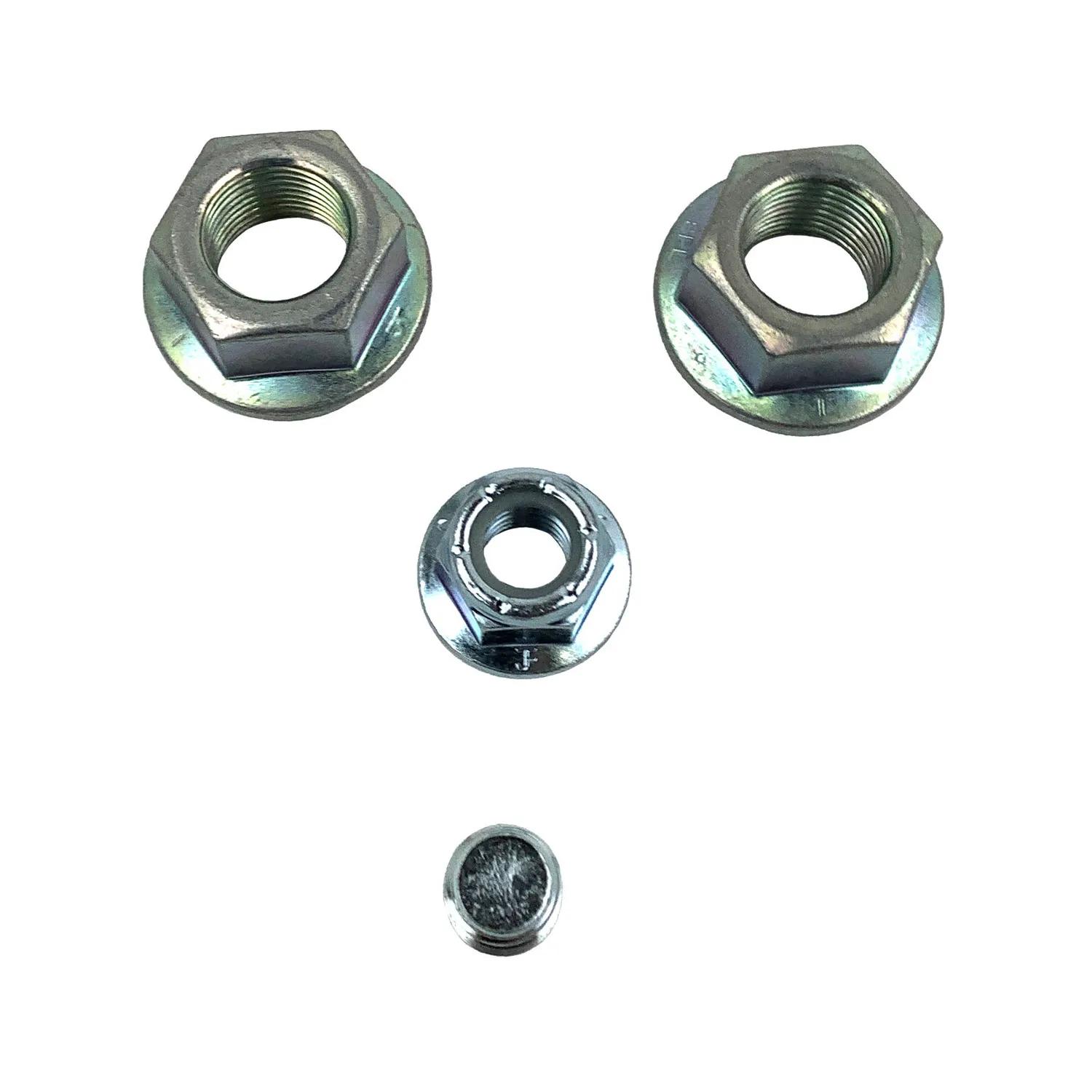

Air Spring Mounting Kit, Fits Axle Type: 5 in Axle and Large-Diameter Axle, 6.5 to 12/13.5/14/15/17/19 in Ride Height, For Platform Slider Suspension System, Axle/Suspension Air Slider System, Tridem Slider System, Fits Models: INTRAAX SP, ULTRAA-K, VANTRAAX HKANT 40K and 46K, HKAT 50K, HKANT 69K23/HKAT 69K25, Includes Spiralock Nuts, Pipe Plug and Flange Nut
Features & Benefits
- Standard frame thickness
- No air spring spacer
- All ride heights with steel air spring spacer
- Standard dual combo stud
- Standard travel
- With 2 in weld-on air spring pedestal - When model includes a 2 in weld-on pedestal under the air spring
- With cast air spring pedestal - when model includes a cast, bolt-on pedestal under the air spring
Specifications
| Includes | Spiralock Nuts, Pipe Plug and Flange Nut |
| Quantity | 2 |
| Application | Platform Slider Suspension System, Axle/Suspension Air Slider System, Tridem Slider System |
| Fits Axle Type | 5 in Axle and Large-Diameter Axle |
| Fits Models | INTRAAX SP, ULTRAA-K, VANTRAAX HKANT 40K and 46K, HKAT 50K, HKANT 69K23/HKAT 69K25 |
| Ride Height | 6.5 to 12; 13.5; 14; 15; 17; 19 in |
| Product Category | Air Spring Mounting Kit |
Interchanges & Equivalent parts:
| 334-1878 |
| HENS226192 |
| S22619/2 |
| S226192 |
| TURS226192 |
| S-22619/2 |
