Air Spring, Rolling Lobe Air Spring, 7100 lb at 100 psi, 5600 lb at 80 psi, 9.9 in Compressed Length, 24.6 in Extended Length, 12.6 in
#MZHAB1DK23P-9471
Product Overview
Air Spring, Rolling Lobe Air Spring, 7100 lb at 100 psi, 5600 lb at 80 psi, 9.9 in Compressed Length, 24.6 in Extended Length, 12.6 in, For SAF Holland/Neway
Features & Benefits
- Note This piston has a one bolt bottom mount not a two bolt mount
- AB9947P bracket
- Bumper

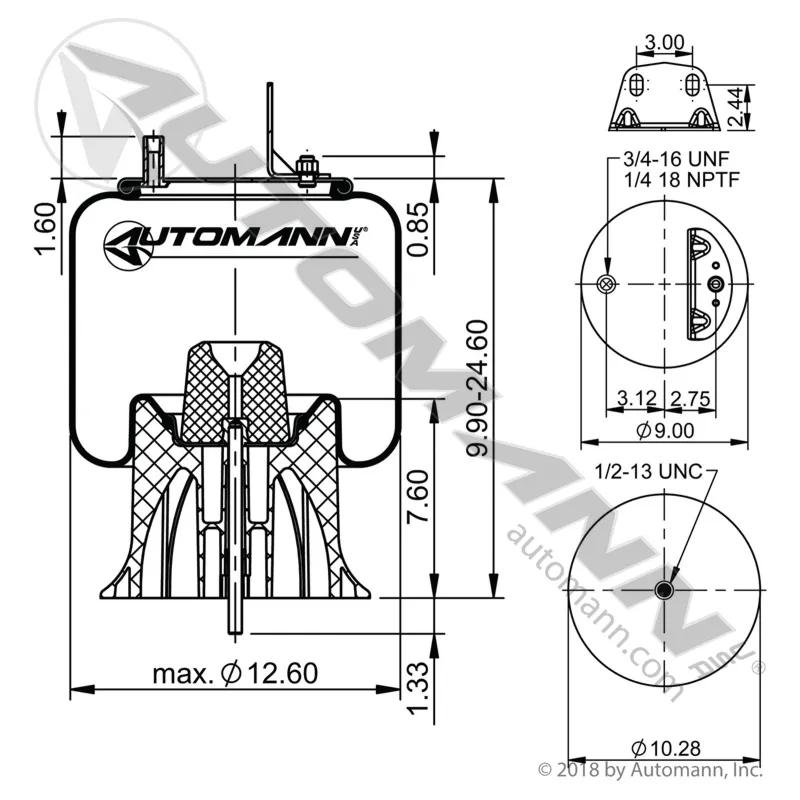

- Bottom plate diameter (C): 10.28
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 5.87
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 16 in design height, 64 cpm natural frequency, bellows#: 9 10-17.5 Contitech, 1T15V-8 Firestone, 1DK23P Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | SAF Holland/Neway |
| Bottom Plate Hole/Stud Qty | 1 |
| Bracket | AB9947P |
| Bumper | Yes |
| Compressed Length | 9.9 in |
| Contitech Bellow # | 9 10-17.5 |
| Design Height (in.) | 16 in (40.64 cm) |
| Diameter | 9 in (22.86 cm) |
| Extended Length | 24.6 in |
| UPC | 889626211430 |
| Weight | 17.62 lb |
| Capacity | 7100 lb at 100 psi, 5600 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23P-9471 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| 57QL415M |
| AB1DK23P-9471 |
