Air Spring, Rolling Lobe Air Spring, 7100 lb at 100 psi, 5600 lb at 80 psi, 9.9 in Compressed Length, 24.6 in Extended Length, 12.6 in
#MZHAB1DK23P-9501
Product Overview
Air Spring, Rolling Lobe Air Spring, 7100 lb at 100 psi, 5600 lb at 80 psi, 9.9 in Compressed Length, 24.6 in Extended Length, 12.6 in, For SAF Holland/Neway
Features & Benefits
- Uses AB9471P bracket
- AB9471P bracket
- Bumper

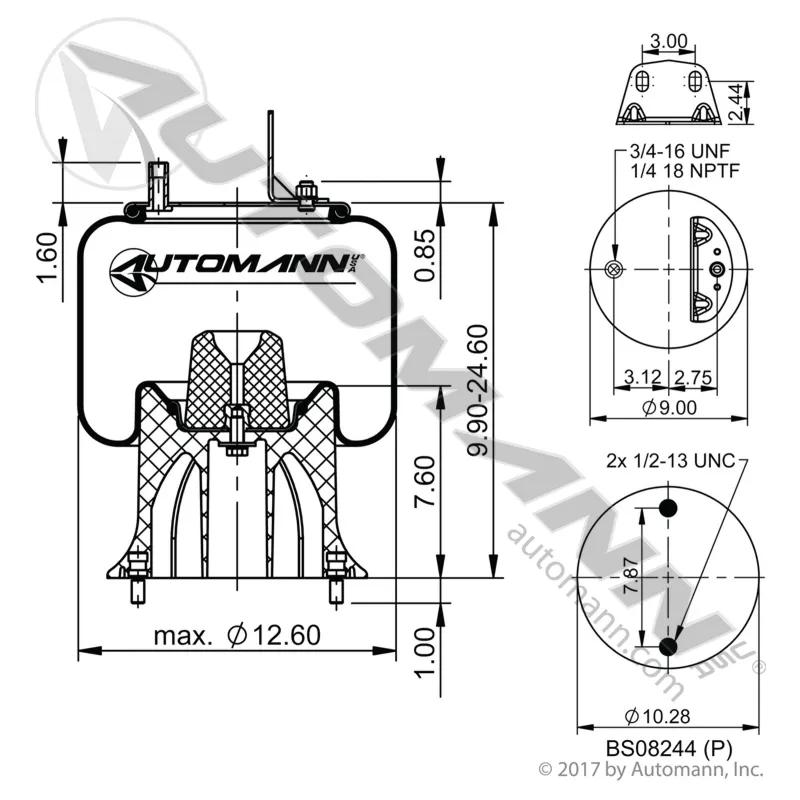

- Bottom plate C to C diameter (D): 7.87 in
- Bottom plate diameter (C): 10.28
- Bottom plate hole/stud qty: 2
- Top plate C to C diameter (B): 5.87
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type, 16 in design height, 64 cpm natural frequency, bellows#: 9 10-17.5 Contitech, 566-24-3-038 Goodyear, 1T15V-8 Firestone, 1DK23P Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | SAF Holland/Neway |
| Compressed Length | 9.9 in |
| Extended Length | 24.6 in |
| UPC | 889626211454 |
| Weight | 15.87 lb |
| Capacity | 7100 lb at 100 psi, 5600 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23P-9501 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK23P-9501 |
