Air Spring, Rolling Lobe Air Spring, 8800 lb at 100 psi, 6900 lb at 80 psi, 8.8 in Compressed Length, 26.5 in Extended Length, 13.7 in
#MZHAB1D28C-9122
Product Overview
Air Spring, Rolling Lobe Air Spring, 8800 lb at 100 psi, 6900 lb at 80 psi, 8.8 in Compressed Length, 26.5 in Extended Length, 13.7 in, For AB1DK28C-A026 Must Rotate Bottom Piston 45 deg, For Hendrickson Trailer, Reyco Granning, SAF Holland/Neway, Watson and Chalin
Features & Benefits

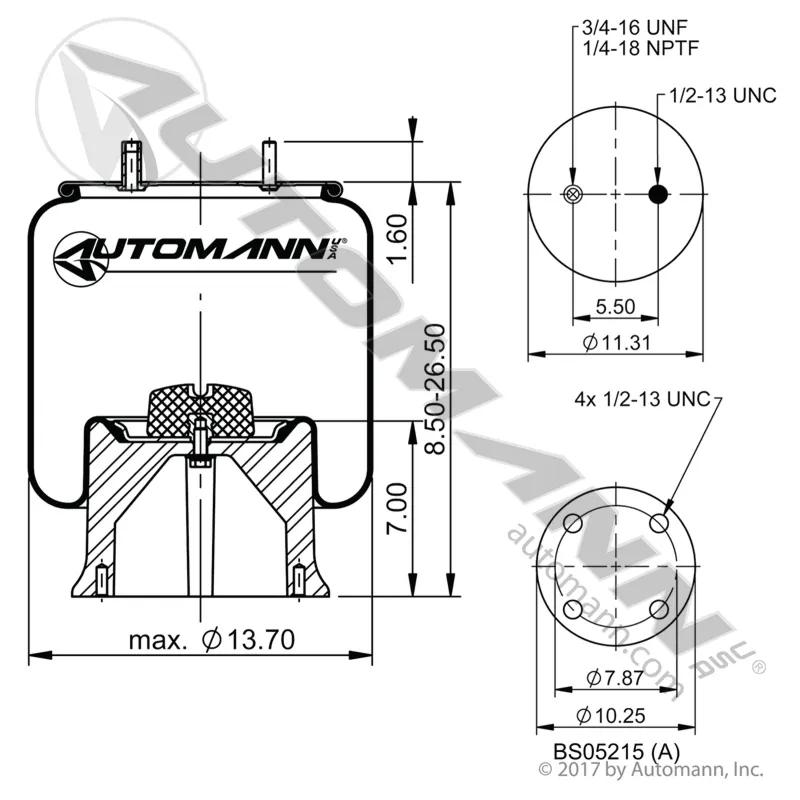

- Bumper
- Bottom plate C to C diameter (D): 7.87 in
- Bottom plate diameter (C): 10.25
- Bottom plate hole/stud qty: 4
- Top plate C to C diameter (B): 5.5
- Top plate diameter (A): 11.31
- Top plate hole/stud qty: 2
- Aluminum bottom plate type
- 16.5 in design height
- 62 cpm natural frequency, bellows#: 6366 Triangle, 11 10.5 -21 Contitech, 566-28-3-020, 566-26-3-072 Goodyear, 1T19F-11, 1T19L-11 Firestone, 1D28C Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson Trailer, Reyco Granning, SAF Holland/Neway, Watson and Chalin |
| Compressed Length | 8.8 in |
| Extended Length | 26.5 in |
| UPC | 889626208775 |
| Weight | 24 lb |
| Capacity | 8800 lb at 100 psi, 6900 lb at 80 psi |
| Fits Models | AB1DK28C-A026 Must Rotate Bottom Piston 45 deg |
| Fitting Size | 13.7 in |
| Manufacturer Part Number | AB1D28C-9122 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1D28C-9122 |
