Air Spring, Rolling Lobe Air Spring, Aluminum Base, 8800 lb at 100 psi, 6900 lb at 80 psi, 8.5 in Compressed Length, 26.5 in Extended Length, 13.7 in
#MZHAB1D28C-A965
Product Overview
Air Spring, Rolling Lobe Air Spring, Aluminum Base, 8800 lb at 100 psi, 6900 lb at 80 psi, 8.5 in Compressed Length, 26.5 in Extended Length, 13.7 in

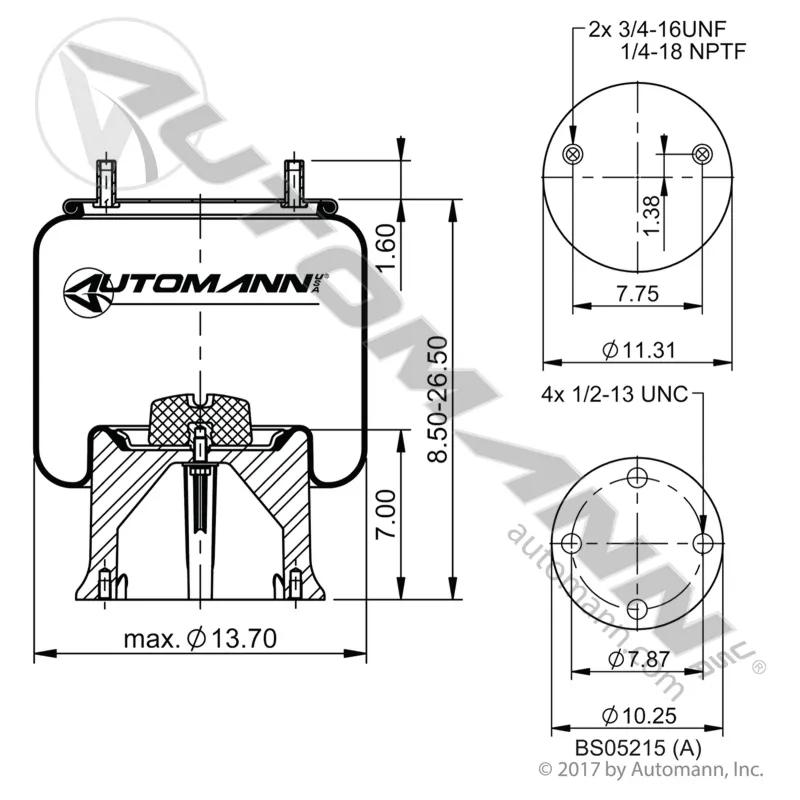

Features & Benefits
- Bumper
- Bottom plate C to C diameter (D): 7.87 in
- Bottom plate diameter (C): 10.25
- Bottom plate hole/stud qty: 4
- Top plate C to C diameter (B): 7.75
- Top plate diameter (A): 11.31
- Top plate hole/stud qty: 2
- Aluminum bottom plate type
- 16.5 in design height
- 62 cpm natural frequency, bellows#: 11 10.5 -21 Contitech, 566-28-3-017, 566-28-3-020 Goodyear, 1D28C Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Bottom Plate Hole/Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 8.5 in |
| Contitech Bellow # | 11 10.5 -21 |
| Design Height (in.) | 16-1/2 in (41.91 cm) |
| Diameter | 11-5/16 in (28.73 cm) |
| Extended Length | 26.5 in |
| Material | Aluminum Base |
| UPC | 889626208836 |
| Weight | 23.59 lb |
| Capacity | 8800 lb at 100 psi, 6900 lb at 80 psi |
| Fitting Size | 13.7 in |
| Manufacturer Part Number | AB1D28C-A965 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1D28C-A965 |
